range of product	Lexium integrated drive
product or component type	Motion integrated drive
device short name	ILE
motor type	Brushless DC motor
number of motor poles	6
network number of phases	Single phase
[Us] rated supply voltage	36 V 24 V
network type	DC
communication interface	CANopen DS301, integrated
length	174 mm
winding type	Medium speed of rotation and medium torque
electrical connection	Printed circuit board connector
holding brake	Without
gear box type	Straight teeth gear, 4 stages
reduction ratio	54:1 (490:9)
nominal speed	73 rpm at 24 V 88 rpm at 36 V
nominal torque	10 N.m at 36 V 9.5 N.m at 24 V

Complementary
transmission rate	50, 100, 125, 250, 500, 800 and 1000 kbauds
mounting support	Flange
motor flange size	66 mm
number of motor stacks	1
centring collar diameter	16 mm
centring collar depth	4 mm
number of mounting holes	4
mounting holes diameter	4.4 mm
circle diameter of the mounting holes	73.54 mm
feedback type	BLDC encoder
shaft end	Keyed
second shaft	Without second shaft end
shaft diameter	10 mm
shaft length	25 mm
key width	16 mm
supply voltage limits	18…40 V
current consumption	7000 mA peak 5500 mA maximum continuous
associated fuse rating	10 A
input/output type	4 signals (each be used as input or output)
voltage state 0 guaranteed	-3...4.5 V
voltage state 1 guaranteed	15...30 V
discrete input current	10 mA at 24 V on/STO_A for safety input 3 mA at 24 V on/STO_B for safety input 2 mA at 24 V for 24 V signal interface
discrete output voltage	23...25 V
maximum switching current	100 mA per output 200 mA total
protection type	Safe torque off Overload of output voltage Short circuit of the output voltage
maximum supply current	0.06 A at 36 V (power stage disabled) 0.1 A at 24 V (power stage disabled) 3.5 A at 36 V 4.3 A at 24 V
nominal output power	73 W at 24 V 88 W at 36 V
peak stall torque	12.64 N.m at 24 V 17.5 N.m at 36 V
continuous stall torque	11.5 N.m
detent torque	3.3 N.m
speed feedback resolution	12 points/turn motor 0.55° gearbox output
accuracy error	+/- 1 point
maximum torsional backlash	1 °
rotor inertia	441 kg.cm²
maximum mechanical speed	92 rpm
maximum radial force Fr	200 N (long-term operation) 200 N (short-term operation)
maximum axial force Fa	10 N (long-term operation) 80 N (short-term operation)
service life in hours	2500 h bearing short-term operation 15000 h bearing long-term operation
marking	CE
type of cooling	Natural convection
net weight	1.85 kg

Environment
standards	IEC 60072-1 EN 61800-3:2001, second environment EN/IEC 50178 EN/IEC 61800-3 EN 50347 IEC 61800-3, Ed 2 EN 61800-3 : 2001-02
product certifications	TÜV UL cUL
ambient air temperature for operation	50…65 °C (with power derating of 2 % per °C) 0…50 °C (without derating)
permissible ambient air temperature around the device	105 °C power amplifier 110 °C motor
ambient air temperature for storage	-25…70 °C
operating altitude	<= 1000 m without derating
relative humidity	15…85 % without condensation
vibration resistance	20 m/s² (f= 10…500 Hz) 10 cycles conforming to EN/IEC 60068-2-6
shock resistance	150 m/s² 1000 shocks conforming to EN/IEC 60068-2-29
IP degree of protection	IP41 shaft bushing: conforming to EN/IEC 60034-5 IP54 total except shaft bushing: conforming to EN/IEC 60034-5

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	2.315 kg
Package 1 Height	11 cm
Package 1 width	19 cm
Package 1 Length	39 cm
Unit Type of Package 2	S06
Number of Units in Package 2	10
Package 2 Weight	36.15 kg
Package 2 Height	73.5 cm
Package 2 width	60 cm
Package 2 Length	80 cm
Unit Type of Package 3	S04
Number of Units in Package 3	5
Package 3 Weight	12.802 kg
Package 3 Height	30 cm
Package 3 width	40 cm
Package 3 Length	60 cm

Contractual warranty
Warranty	18 months

Havale ile Ödeme ₺23.191,99 + KDV

Kredi Kartı Tek Çekim ₺23.191,99 + KDV

Etiketler

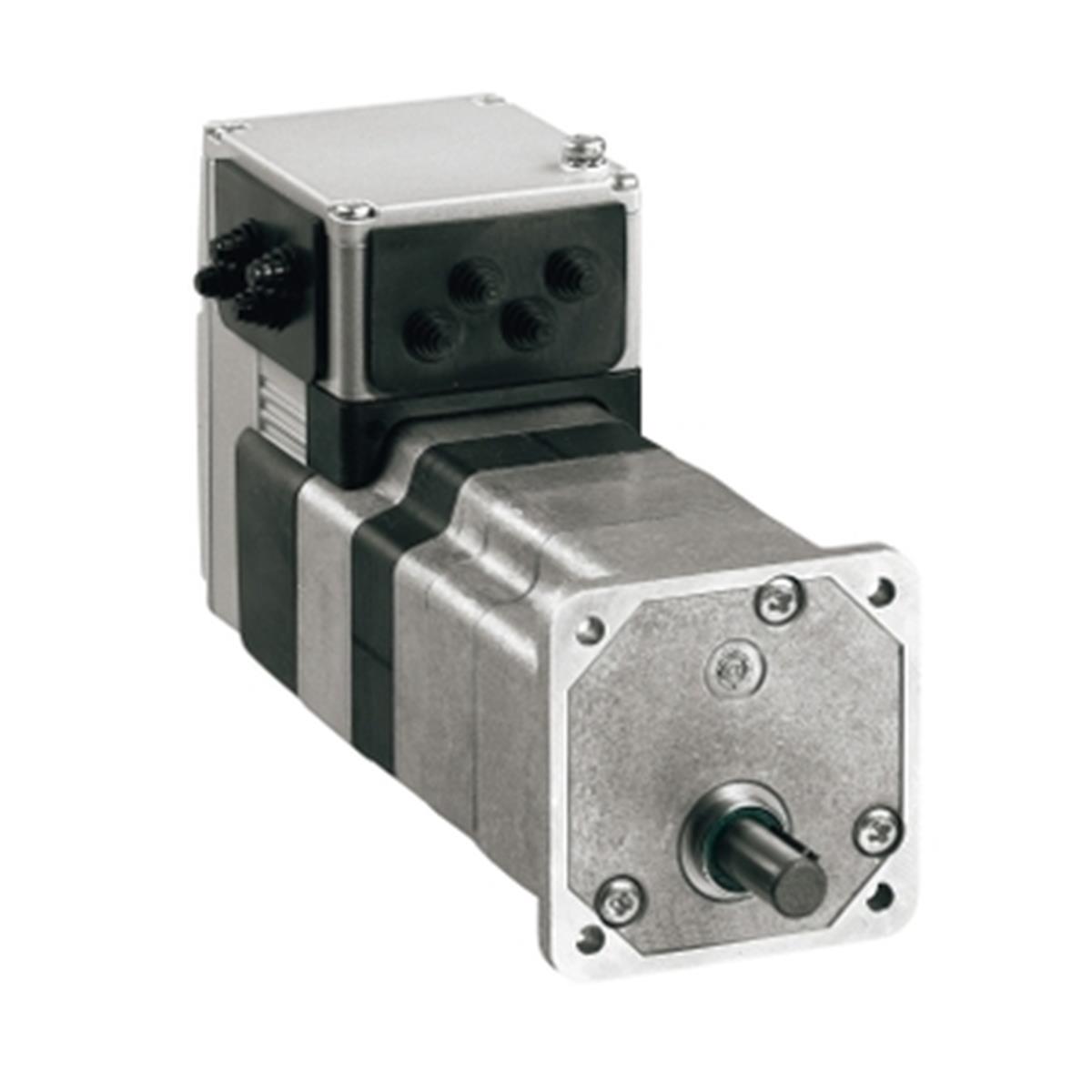

Schneider Electric ILE1F661PB1A3 Fırçasız Dc Motor 24..36 V - Canopen Ds301 - U = 174 Mm - 54:1 (ILE1F661PB1A3)
