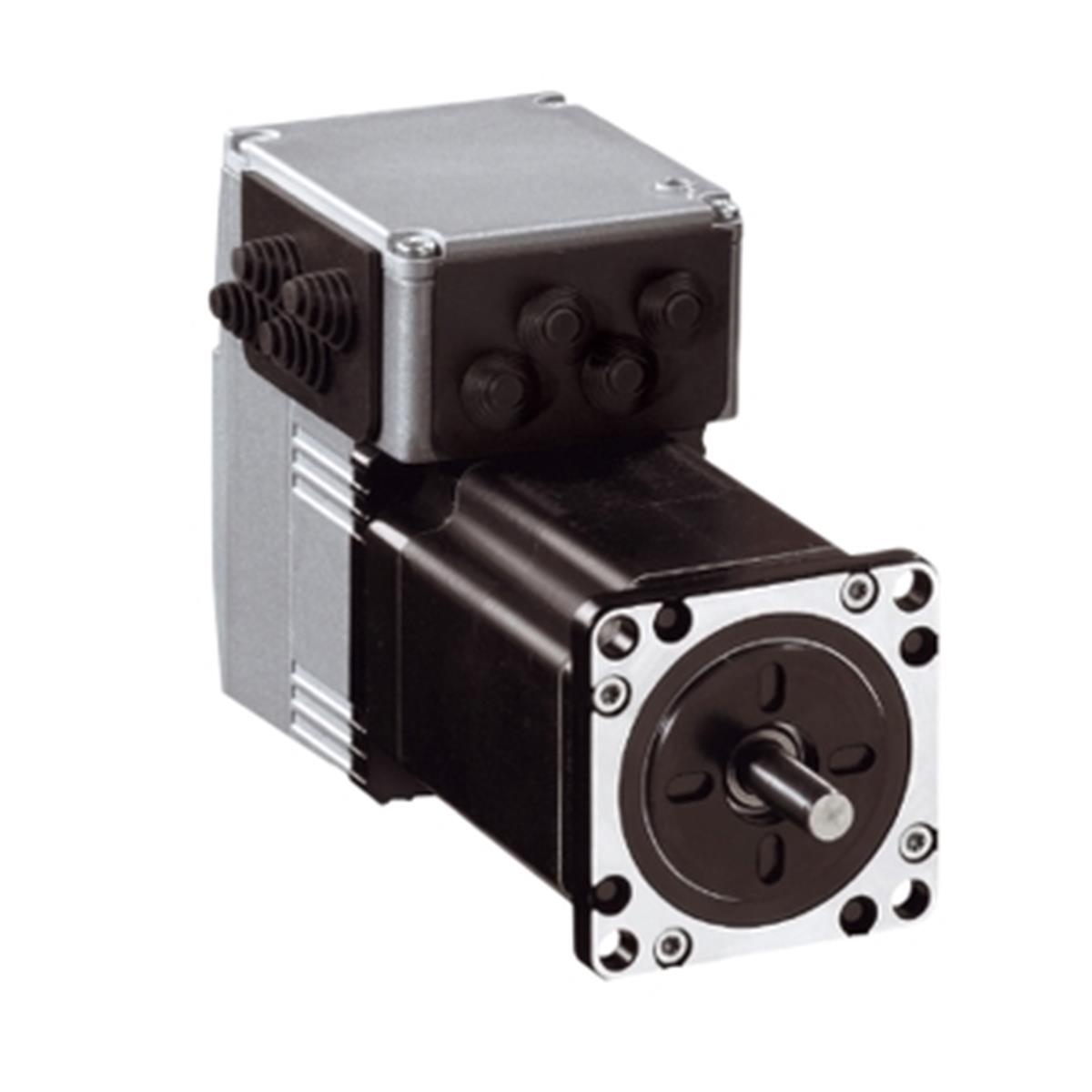

ILS1F573PB1A0 Schneider Electric ILS1F573PB1A0 Entegre Sürücüllü Step Mo - 24..36 V -3,5A CANopen
SCHNEIDER ELECTRIC

Schneider Electric ILS1F573PB1A0 Entegre Sürücüllü Step Mo - 24..36 V -3,5A CANopen (ILS1F573PB1A0)

İndirim Oranı : %58 İndirim
KDV Dahil : €1.183,20
İndirimli : €418,50  + KDV
KDV Dahil : ₺18.304,29
TL Fiyat : ₺15.253,57(₺3.050,71 + KDV)
Barkod : 3389119227087
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)

Specifications



Main
range of product Lexium integrated drive
product or component type Motion integrated drive
device short name ILS
motor type 3-phase stepper motor
number of motor poles 6
network number of phases Single phase
[Us] rated supply voltage 24 V
36 V
network type DC
communication interface CANopen DS301, integrated
length 138.9 mm
winding type Medium speed of rotation and medium torque
electrical connection Printed circuit board connector
holding brake Without
gear box type Without
nominal speed 200 rpm at 24 V
500 rpm at 36 V
nominal torque 1.5 N.m
holding torque 1.7 N.m
Complementary
transmission rate 50, 100, 125, 250, 500, 800 and 1000 kbauds
mounting support Flange
motor flange size 57 mm
number of motor stacks 3
centring collar diameter 38.1 mm
centring collar depth 1.6 mm
number of mounting holes 4
mounting holes diameter 5.2 mm
circle diameter of the mounting holes 66.6 mm
feedback type Index pulse
shaft end Untapped
second shaft Without second shaft end
shaft diameter 8 mm
shaft length 21 mm
supply voltage limits 18…40 V
current consumption 3500 mA maximum
associated fuse rating 10 A
input/output type 4 signals (each be used as input or output)
voltage state 0 guaranteed -3...4.5 V
voltage state 1 guaranteed 15...30 V
discrete input current 10 mA at 24 V on/STO_A for safety input
3 mA at 24 V on/STO_B for safety input
2 mA at 24 V for 24 V signal interface
discrete output voltage 23...25 V
maximum switching current 100 mA per output
200 mA total
protection type Short circuit of the output voltage
Safe torque off
Overload of output voltage
peak stall torque 1.5 N.m
continuous stall torque 1.5 N.m
speed feedback resolution 20000 points/turn
accuracy error +/- 6 arc min
rotor inertia 0.38 kg.cm²
maximum mechanical speed 3000 rpm
maximum radial force Fr 50 N
maximum axial force Fa 100 N (tensile force)
8.4 N (force pressure)
service life in hours 20000 h bearing
marking CE
type of cooling Natural convection
net weight 2 kg
Environment
standards IEC 60072-1
EN 61800-3 : 2001-02
EN 50347
IEC 61800-3, Ed 2
EN/IEC 50178
EN 61800-3:2001, second environment
EN/IEC 61800-3
product certifications TÜV
cUL
UL
ambient air temperature for operation 50…65 °C (with power derating of 2 % per °C)
0…50 °C (without derating)
permissible ambient air temperature around the device 105 °C power amplifier
110 °C motor
ambient air temperature for storage -25…70 °C
operating altitude <= 1000 m without derating
relative humidity 15…85 % without condensation
vibration resistance 20 m/s² (f= 10…500 Hz) 10 cycles conforming to EN/IEC 60068-2-6
shock resistance 150 m/s² 1000 shocks conforming to EN/IEC 60068-2-29
IP degree of protection IP41 shaft bushing: conforming to EN/IEC 60034-5
IP54 total except shaft bushing: conforming to EN/IEC 60034-5
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 2.122 kg
Package 1 Height 10.6 cm
Package 1 width 24.6 cm
Package 1 Length 16.8 cm
Unit Type of Package 2 P06
Number of Units in Package 2 18
Package 2 Weight 46.588 kg
Package 2 Height 40 cm
Package 2 width 80 cm
Package 2 Length 60 cm
Contractual warranty
Warranty 18 months
