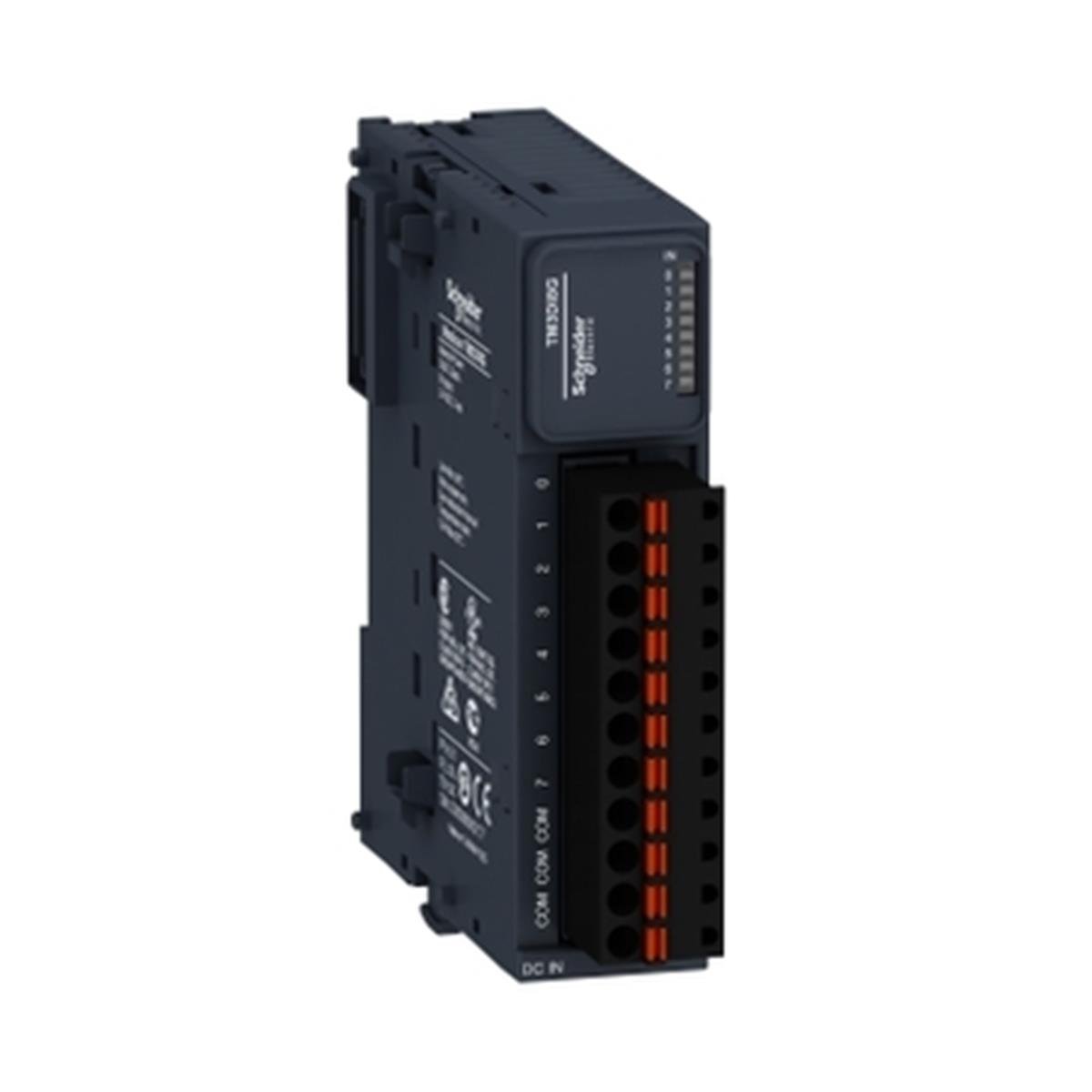

TM3DI8G Schneider Electric TM3DI8G MODULE TM3-8 INPUTS SPRING
SCHNEIDER ELECTRIC

Schneider Electric TM3DI8G MODULE TM3-8 INPUTS SPRING (TM3DI8G)

İndirim Oranı : %54 İndirim
KDV Dahil : €118,80
İndirimli : €45,54  + KDV
KDV Dahil : ₺1.970,04
TL Fiyat : ₺1.641,70(₺328,34 + KDV)
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)

Specifications



Main
range of product Modicon TM3
product or component type Discrete input module
range compatibility Modicon M241
Modicon M251
Modicon M221
Modicon M262
discrete input number 8 for input conforming to IEC 61131-2 Type 1
discrete input logic Sink or source (positive/negative)
discrete input voltage 24 V
discrete input current 7 mA for input
Complementary
discrete I/O number 8
current consumption 5 mA at 5 V DC via bus connector (at state off)
0 mA at 24 V DC via bus connector (at state on)
0 mA at 24 V DC via bus connector (at state off)
24 mA at 5 V DC via bus connector (at state on)
discrete input voltage type DC
voltage state 1 guaranteed 15...28.8 V for input
current state 1 guaranteed >= 2.5 mA (input)
voltage state 0 guaranteed 0...5 V for input
current state 0 guaranteed <= 1 mA (input)
input impedance 3.4 kOhm
response time 4 ms (turn-on)
4 ms (turn-off)
local signalling 1 LED per channel (green) for input status
electrical connection 11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for inputs
maximum cable distance between devices Unshielded cable: <30 m for regular input
insulation Between input and internal logic at 500 V AC
Non-insulated between inputs
marking CE
mounting support Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kit
height 90 mm
depth 84.6 mm
width 27.4 mm
net weight 0.085 kg
Environment
standards EN/IEC 61010-2-201
EN/IEC 61131-2
product certifications CULus
C-Tick
resistance to electrostatic discharge 8 kV in air conforming to EN/IEC 61000-4-2
4 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
resistance to magnetic fields 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
resistance to fast transients 1 kV for I/O conforming to EN/IEC 61000-4-4
surge withstand 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC
resistance to conducted disturbances 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
electromagnetic emission Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011
Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
ambient air temperature for operation -10…35 °C vertical installation
-10…55 °C horizontal installation
ambient air temperature for storage -25…70 °C
relative humidity 10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage)
IP degree of protection IP20 with protective cover in place
pollution degree 2
operating altitude 0...2000 m
storage altitude 0…3000 m
vibration resistance 3.5 mm at 5…8.4 Hz on DIN rail
3 gn at 8.4…150 Hz on DIN rail
3.5 mm at 5…8.4 Hz on panel
3 gn at 8.4…150 Hz on panel
shock resistance 15 gn for 11 ms
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 230.0 g
Package 1 Height 7.5 cm
Package 1 width 10.5 cm
Package 1 Length 12.5 cm
Unit Type of Package 2 S04
Number of Units in Package 2 27
Package 2 Weight 5.183 kg
Package 2 Height 30 cm
Package 2 width 40 cm
Package 2 Length 60 cm
Unit Type of Package 3 S02
Number of Units in Package 3 9
Package 3 Weight 2.234 kg
Package 3 Height 15 cm
Package 3 width 30 cm
Package 3 Length 40 cm
