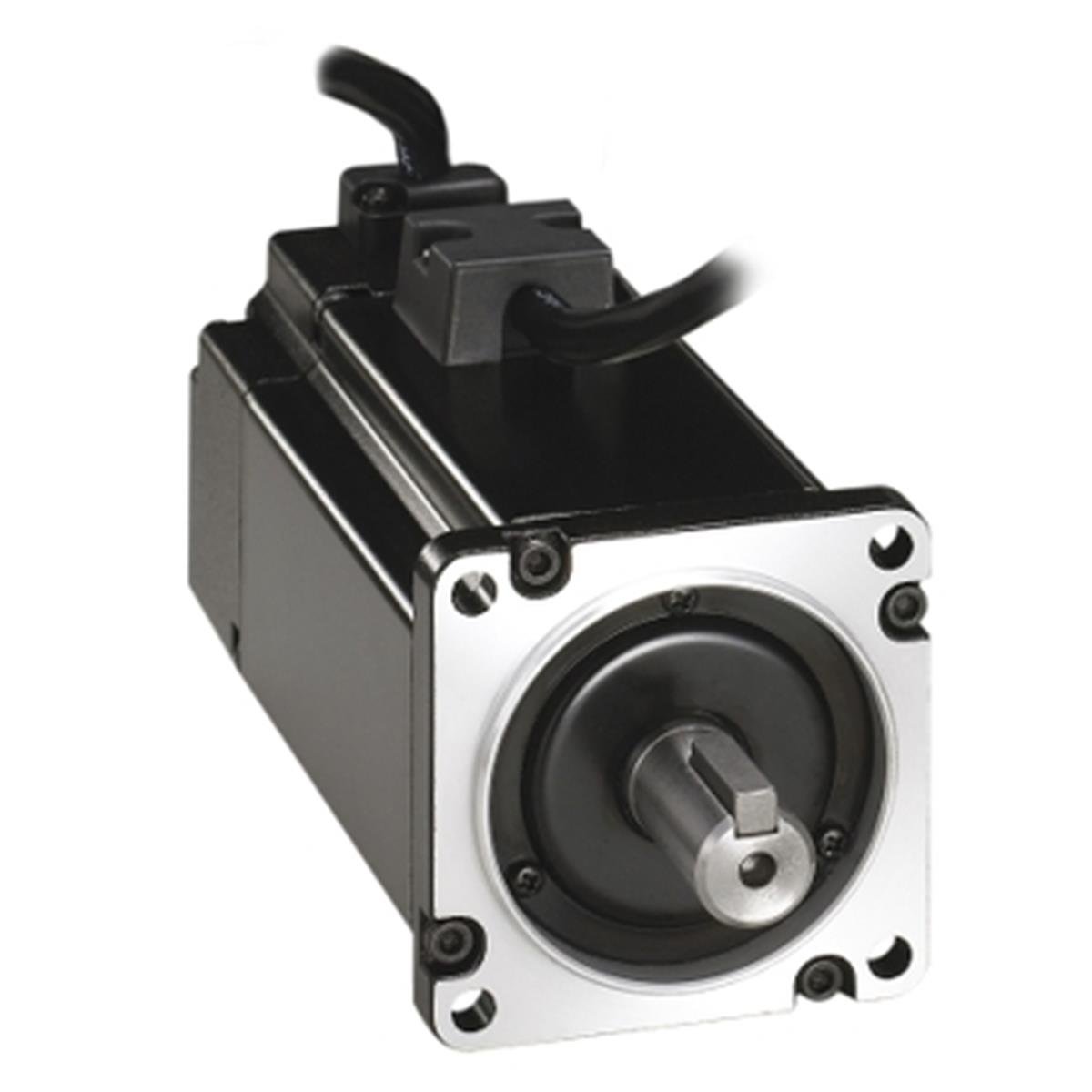

BCH0601O12A1C Schneider Electric BCH0601O12A1C Bch Servo Motor - Kamalı - 20-Bit Enkoder - Frensiz Düz Konnektör
SCHNEIDER ELECTRIC

Schneider Electric BCH0601O12A1C Bch Servo Motor - Kamalı - 20-Bit Enkoder - Frensiz Düz Konnektör (BCH0601O12A1C)

İndirim Oranı : %54 İndirim
KDV Dahil : €563,76
İndirimli : €216,11  + KDV
KDV Dahil : ₺9.523,93
TL Fiyat : ₺7.936,61(₺1.587,32 + KDV)
Barkod : 3606480177811
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)

Specifications



Main
range compatibility Lexium 23 Plus
product or component type Servo motor
device short name BCH
Complementary
maximum mechanical speed 5000 rpm
[Us] rated supply voltage 220 V
network number of phases Single phase
continuous stall current 1.55 A
continuous power 0.2 kW
shaft end Keyed
second shaft Without second shaft end
shaft diameter 14 mm
shaft length 24 mm
key width 5 mm
feedback type 20 bits incremental encoder
holding brake Without
mounting support Asian standard flange
motor flange size 60 mm
torque constant 0.41 N.m/A
back emf constant 17.4 V/krpm at 20 °C
rotor inertia 0.177 kg.cm²
stator resistance 5.58 Ohm at 20 °C
stator inductance 24.14 mH at 20 °C
stator electrical time constant 4.3 ms at 20 °C
maximum radial force Fr 196 N
maximum axial force Fa 68 N
brake pull-in power 6.5 W
type of cooling Natural convection
length 105.5 mm
number of motor stacks 1
centring collar diameter 50 mm
centring collar depth 3 mm
number of mounting holes 4
mounting holes diameter 5.5 mm
circle diameter of the mounting holes 70 mm
distance shaft shoulder-flange 24 mm
net weight 1.2 kg
Environment
IP degree of protection IP40
ambient air temperature for operation 0…40 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 1.47 kg
Package 1 Height 17.6 cm
Package 1 width 14.2 cm
Package 1 Length 25.7 cm
Unit Type of Package 2 S06
Number of Units in Package 2 30
Package 2 Weight 57.1 kg
Package 2 Height 73.5 cm
Package 2 width 60 cm
Package 2 Length 80 cm
Contractual warranty
Warranty 18 months
