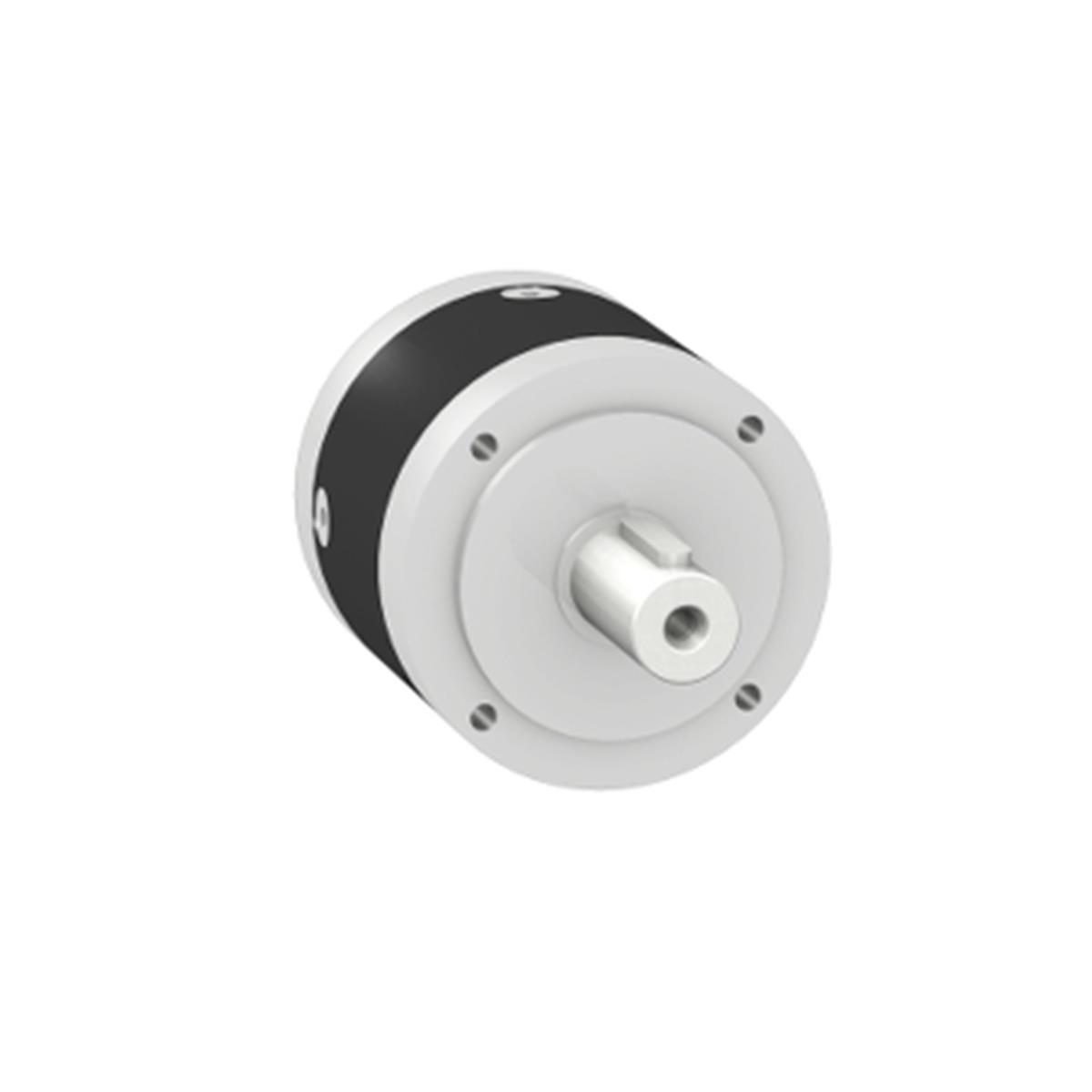

GBX120010K Schneider Electric GBX120010K ,Düz diş Redüktör i:10 GBX - Ø 120 mm
SCHNEIDER ELECTRIC

Schneider Electric GBX120010K ,Düz diş Redüktör i:10 GBX - Ø 120 mm (GBX120010K)

İndirim Oranı : %54 İndirim
KDV Dahil : €1.892,40
İndirimli : €725,42  + KDV
KDV Dahil : ₺31.381,41
TL Fiyat : ₺26.151,17(₺5.230,23 + KDV)
Barkod : 3606485317502
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)

Specifications



Main
range compatibility Lexium 32
Lexium 62
Lexium 28
Lexium 62 ILM
Lexium 52
product or component type Planetary gearbox
gear box type Straight teeth
device short name GBX
product compatibility BMH (100 mm, 3 motor stacks)
BSH (100 mm, 1 motor stacks)
BSH (100 mm, 3 motor stacks)
BCH2 (100 mm, 1 motor stacks)
BCH2 (130 mm, 1 motor stacks)
SH3
MH3
ILM
gearbox external diameter 120 mm
reduction ratio 10:1
Complementary
maximum torsional backlash 7 arc.min
torsional rigidity 12 N.m/arcmin
housing colour Black
housing material Black anodized aluminium
shaft material C 45
additional information Lubricated for life
service life in hours 30000 h at 100 rpm at 30 °C
mounting position Any position
efficiency 96 %
maximum radial force Fr 1500 N at 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
maximum axial force Fa 2100 N at 100 rpm, during 30000 hour at 30°C
moment of inertia 1.3 kg.cm²
continuous output torque 95 N.m at 100 rpm at 30 °C
maximum output torque 152 N.m at 100 rpm at 30 °C
net weight 6 kg
Input diameter 24.0 mm
Environment
noise level 65 dB at 1 m, no-load
IP degree of protection Shaft output: IP54
ambient temperature for operation -25…90 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 5.484 kg
Package 1 Height 19 cm
Package 1 width 13 cm
Package 1 Length 13 cm
Unit Type of Package 2 S02
Number of Units in Package 2 2
Package 2 Weight 11.423 kg
Package 2 Height 15 cm
Package 2 width 30 cm
Package 2 Length 40 cm
