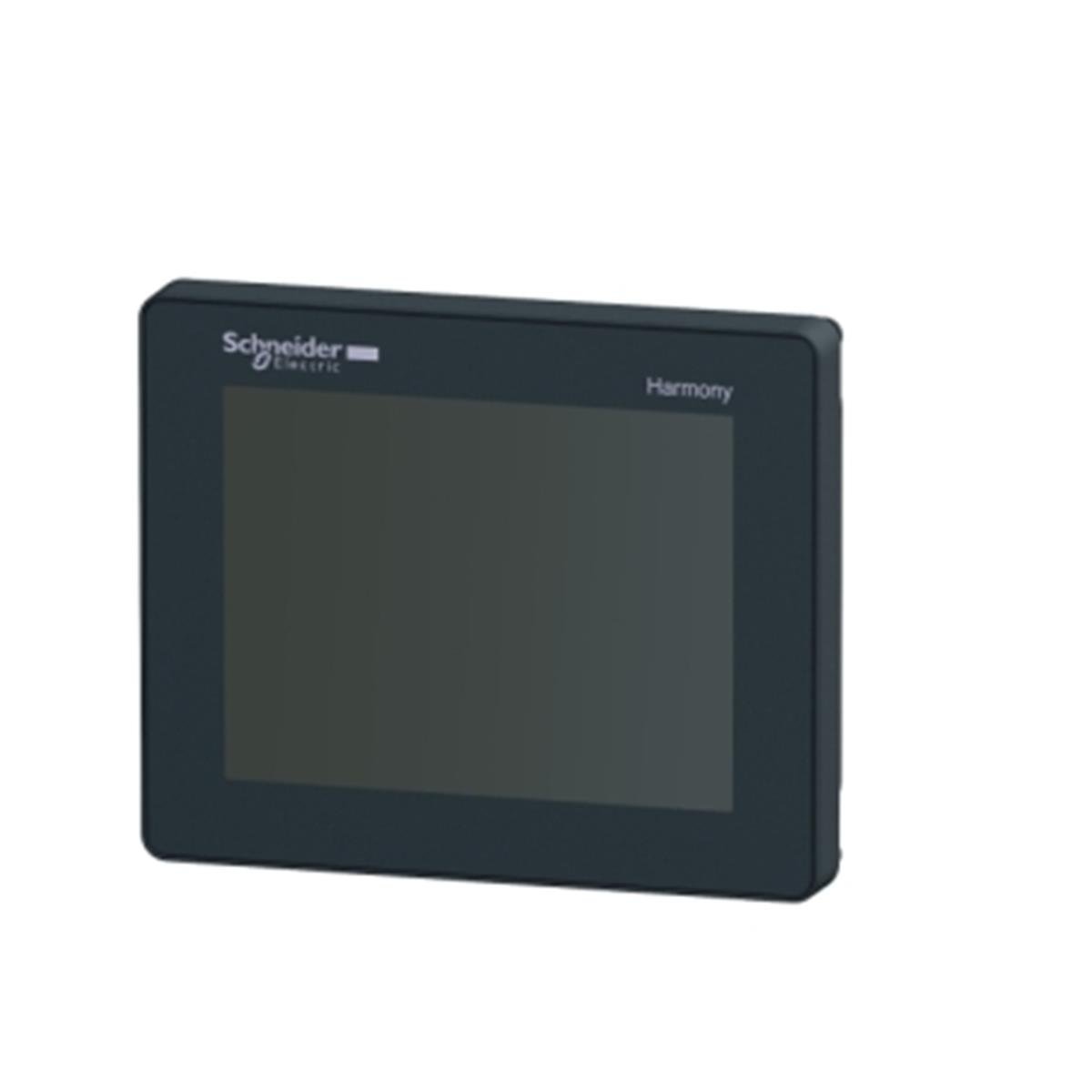

HMISTU655 Schneider Electric , HMISTU655-Dokunmatik Operatör Paneli 35 Renkli
SCHNEIDER ELECTRIC

Schneider Electric , HMISTU655-Dokunmatik Operatör Paneli 35 Renkli (HMISTU655)

İndirim Oranı : %54 İndirim
KDV Dahil : €908,40
İndirimli : €348,22  + KDV
KDV Dahil : ₺15.230,39
TL Fiyat : ₺12.691,99(₺2.538,40 + KDV)
Barkod : 3595864094038
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)

Specifications



Main
range of product Harmony STO & STU
product or component type Touch panel screen
software designation EcoStruxure Operator Terminal Expert
operating system Harmony
Complementary
display size 4.3 inch
display type Colour TFT LCD
display colour 65536 colours
display resolution 480 x 272 pixels
touch panel Analogue
backlight lifespan 50000 hours with white
brightness 16 levels via touch panel
character font Chinese (simplified Chinese)
Japanese (ANK, Kanji)
ASCII (European characters)
Taiwanese (traditional Chinese)
Korean
Cyrillic
[Us] rated supply voltage 12...24 V DC - 10...20 %
power consumption in W 7.5 W
number of pages 8999
memory description Back up of data 512 kB
Application memory 26 MB
integrated connection type 1 USB 2.0 type mini B
1 USB 2.0 type A
1 serial link - RJ45 - RS232C/RS485 (rate: 2400...115200 bps)
supply External source
realtime clock With RTC-battery set optional
downloadable protocols Third party protocols
Modbus
range compatibility MitsubishI
Omron
Siemens
Allen-Bradley
fixing mode By 2 installation fasteners, mounting on 1.5 to 6 mm thick panel
enclosure material PPT
front material Plastic
cut-out dimensions 77.5 x 112.5 mm
66 x 105 mm with mounting adaptor
net weight 0.22 kg
Environment
standards ANSI/ISA 12.12.01
CSA C22.2 No 142
UL 61010-2-201
EN 61000-6-2
CSA C22.2 No 213
EN 61000-6-4
UL 61010-1
EN 61131-2
product certifications UL
C-Tick
KCC
CE
cUL
ATEX zone 2/22
ambient air temperature for operation 0…50 °C
ambient air temperature for storage -20…60 °C
relative humidity 10…90 % without condensation
operating altitude 2000 m
IP degree of protection IP65f (front panel)
IP20 (rear panel)
NEMA degree of protection NEMA 4X/13 front panel (indoor use)
shock resistance 15 gn for 11 ms conforming to IEC 61131-2
vibration resistance 1 gn (f = 5…150 Hz) conforming to IEC 61131-2
3.5 mm constant amplitude (f = 5…150 Hz) conforming to IEC 61131-2
electromagnetic compatibility Resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz)
Resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2
Resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 525.0 g
Package 1 Height 13.2 cm
Package 1 width 7.8 cm
Package 1 Length 18.2 cm
Unit Type of Package 2 S03
Number of Units in Package 2 12
Package 2 Weight 7060.0 g
Package 2 Height 30 cm
Package 2 width 30 cm
Package 2 Length 40 cm
Unit Type of Package 3 P12
Number of Units in Package 3 288
Package 3 Weight 178440.0 g
Package 3 Height 80 cm
Package 3 width 120 cm
Package 3 Length 110 cm
