Complementary
maximum mechanical speed	9000 rpm
[Us] rated supply voltage	115...480 V
network number of phases	Three phase
continuous stall current	0.73 A
continuous stall torque	0.42 N.m at 115...480 V three phase
continuous power	290 W
peak stall torque	1.5 N.m at 115...480 V three phase
nominal output power	100 W at 115 V single phase 210 W at 230 V single phase 400 W at 400 V three phase 440 W at 480 V three phase
nominal torque	0.5 N.m at 115 V single phase 0.5 N.m at 230 V single phase 0.35 N.m at 400 V three phase 0.35 N.m at 480 V three phase
nominal speed	9000 rpm at 480 V three phase 2000 rpm at 115 V single phase 8000 rpm at 230 V single phase 8000 rpm at 400 V three phase
maximum current Irms	2.9 A
shaft end	Smooth shaft
shaft diameter	9 mm
shaft length	20 mm
IP degree of protection	IP54 shaft bushing without shaft seal ring: conforming to EN/IEC 60034-5 IP65 motor: conforming to EN/IEC 60034-5 IP65 shaft bushing: conforming to EN/IEC 60034-5
encoder type	Absolute single turn SinCos Hiperface
speed feedback resolution	128 periods
holding brake	Without
mounting support	International standard flange
motor flange size	55 mm
electrical connection	Straight connector
torque constant	0.58 N.m/A at 120 °C
back emf constant	40 V/krpm at 20 °C
number of motor poles	3
rotor inertia	0.059 kg.cm²
stator resistance	41.8 Ohm
stator inductance	108.72 mH
maximum radial force Fr	340 N at 1000 rpm 270 N at 2000 rpm 240 N at 3000 rpm 220 N at 4000 rpm 200 N at 5000 rpm 190 N at 6000 rpm 180 N at 7000 rpm 170 N at 8000 rpm
maximum axial force Fa	40 N
type of cooling	Natural convection
length	132.5 mm
centring collar diameter	40 mm
centring collar depth	2 mm
number of mounting holes	4
mounting holes diameter	5.5 mm
circle diameter of the mounting holes	63 mm
net weight	1.2 kg

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	1.607 kg
Package 1 Height	11 cm
Package 1 width	19 cm
Package 1 Length	39.5 cm
Unit Type of Package 2	S04
Number of Units in Package 2	3
Package 2 Weight	5.636 kg
Package 2 Height	30 cm
Package 2 width	40 cm
Package 2 Length	60 cm
Package 3 Height	77 cm

Contractual warranty
Warranty	18 months

Havale ile Ödeme ₺24.797,17 + KDV

Kredi Kartı Tek Çekim ₺24.797,17 + KDV

Etiketler

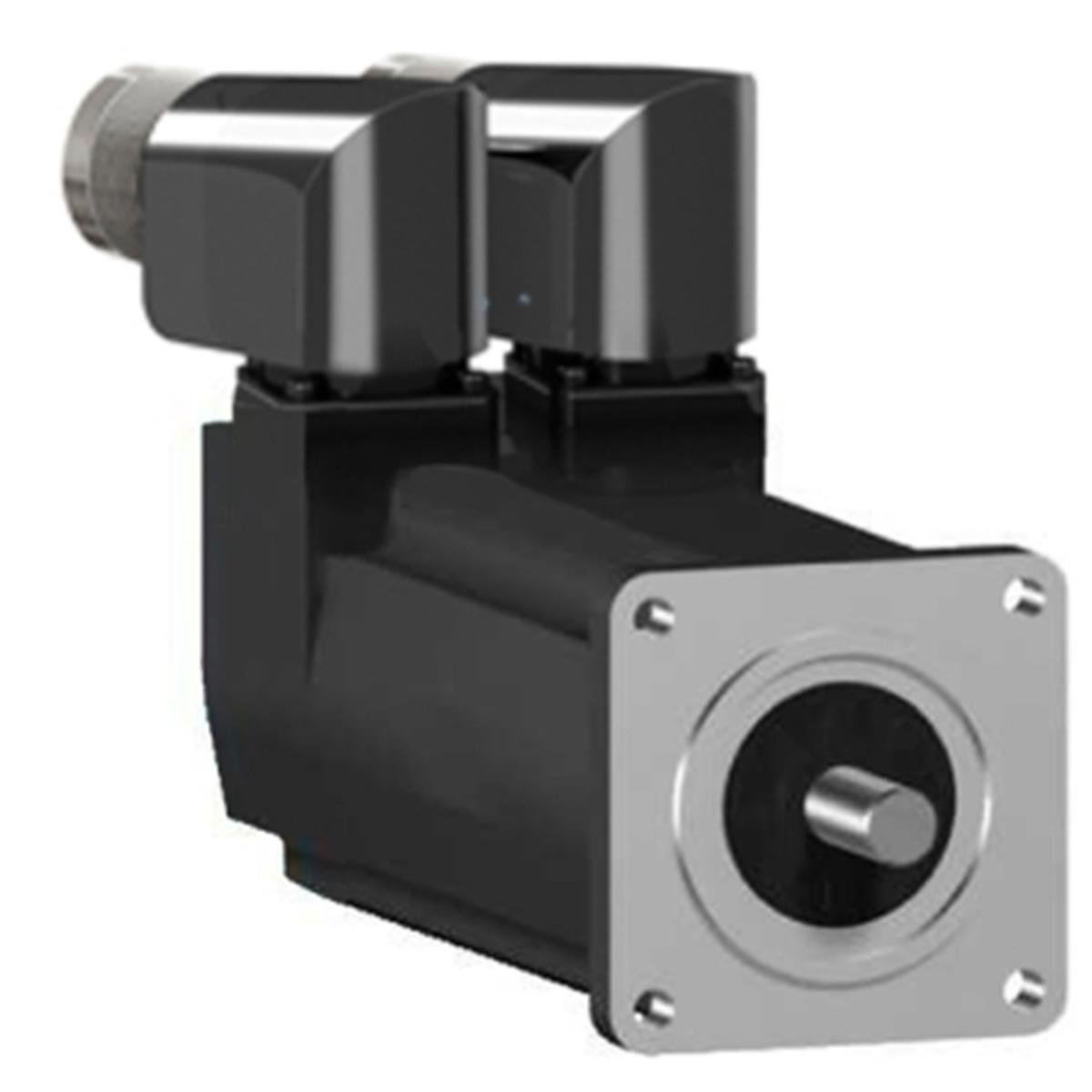

Schneider Electric SH30551P01A200 Servo Motor Sh3 055 0,42Nm,No Kilitli,Single,No Frenli,90°Conn.Ip54/Ip65,9K Rpm (SH30551P01A2000)
