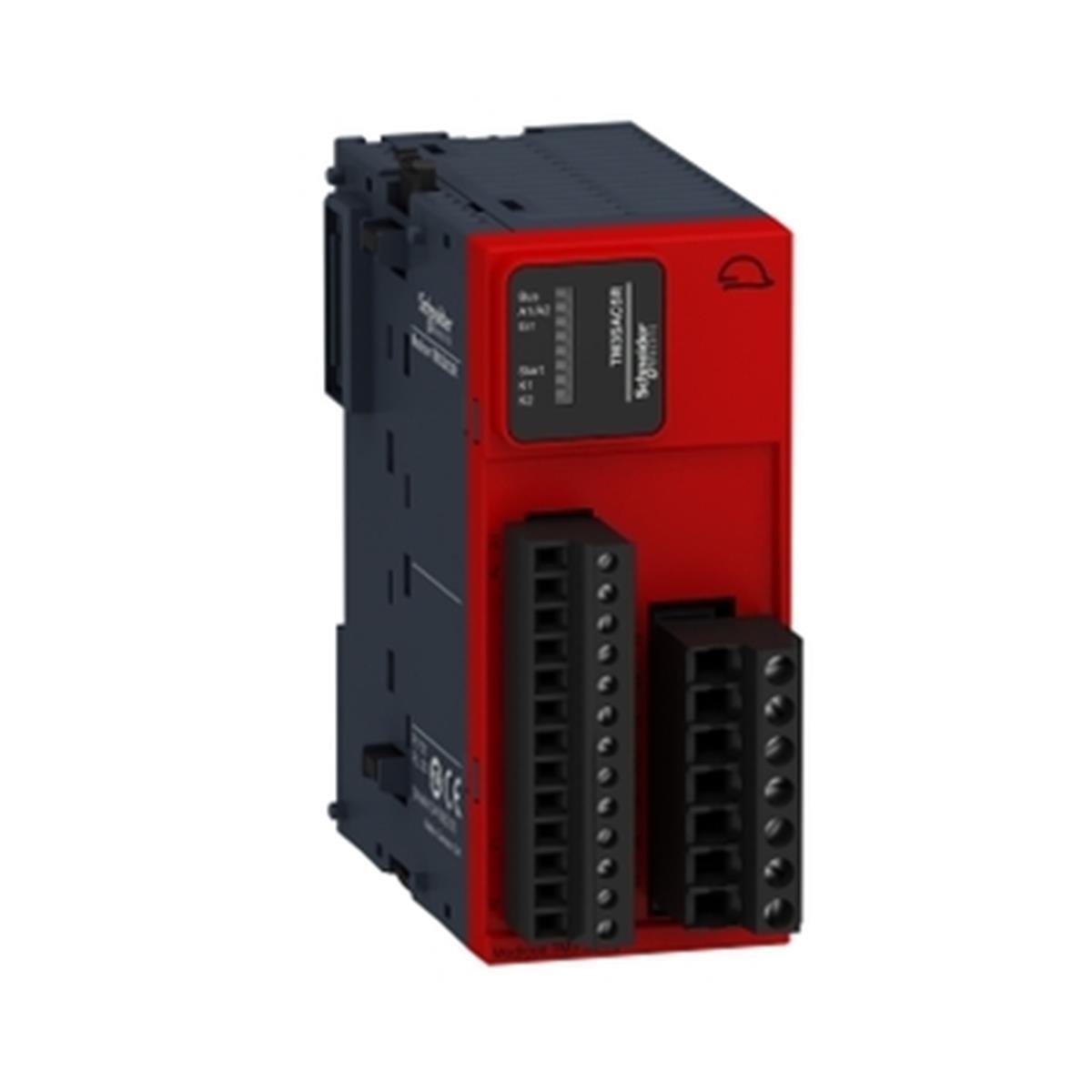

Specifications
Main
| range of product |
Modicon TM3 Safety |
| product or component type |
Safety module |
| device short name |
TM3SAC |
| safety module application |
For emergency stop and switch monitoring |
| function of module |
Emergency stop monitoring 1-channel wiring
Emergency stop monitoring 2-channel wiring
Monitoring of a movable guard with 2 switches and automatic start |
| safety level |
Can reach PL d/category 3 conforming to EN/ISO 13849-1: 2008
Can reach PL d/category 3 conforming to EN/ISO 13849-2: 2012
Can reach SILCL 2 conforming to EN/IEC 62061: 2005
Can reach SIL 2 conforming to EN/IEC 61508: 2010 |
Complementary
| safety reliability data |
DC = 95 % conforming to EN/ISO 13849-1
PFHd = 5E-9 1/h conforming to IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A
PFHd = 30E-9 1/h conforming to IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A
MTTFd = 500 years conforming to EN/ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A
MTTFd = 85 years conforming to EN/ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A
SFF = 95 % conforming to IEC 61508-1
HFT = 1 conforming to IEC 61508-1
Type = A conforming to IEC 61508-1 |
| synchronisation time between inputs |
Unlimited |
| connections - terminals |
Captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34
Captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34
Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34
Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34
Captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² flexible without cable end 13-14, 23-24, 33-34
Captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² solid without cable end 13-14, 23-24, 33-34
Captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34
Captive screw clamp terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34
Captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals
Captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals
Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals
Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals
Captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.5 mm² flexible without cable end other terminals
Captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.75 mm² solid without cable end other terminals
Captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 0.34 mm² flexible with cable end, without bezel other terminals
Captive screw clamp terminals, removable terminal block 2 x 0.5 mm² flexible with cable end, with double bezel other terminals |
| output type |
Relay instantaneous opening, 3 NO circuit(s), potential free |
| number of safety circuits |
3 NO for relay instantaneous opening |
| maximum switching voltage |
230 V utilisation category AC-15 at 50 Hz (relay instantaneous opening)
24 V utilisation category DC-13 (relay instantaneous opening) |
| [Us] rated supply voltage |
24 V - 15...20 % DC |
| power consumption in W |
0.2 W at 5 V DC
3.6 W at 24 V DC |
| input protection type |
Internal, electronic |
| [Uc] control circuit voltage |
24 V DC |
| maximum cable distance between devices |
30 m |
| breaking capacity |
360 VA holding AC-15 B300 relay output
3600 VA inrush AC-15 B300 relay output |
| breaking capacity |
4 A 24 V 50 ms DC-13 relay output |
| output thermal current |
6 A per relay for relay output |
| [Ith] conventional free air thermal current |
18 A |
| associated fuse rating |
4 A gG or gL for relay output conforming to EN/IEC 60947-5-1
6 A fast blow for relay output conforming to EN/IEC 60947-5-1 |
| minimum output current |
10 mA for relay output |
| output voltage |
10 V relay output |
| maximum response time on input open |
40 ms |
| [Ui] rated insulation voltage |
300 V (pollution degree 2) conforming to IEC 60647-5-1 |
| [Uimp] rated impulse withstand voltage |
4 kV overvoltage category III conforming to IEC 60647-5-1 |
| current consumption |
100 mA at 24 V DC external supply (at state on) |
| local signalling |
6 LEDs (green/red) for user |
| electrical connection |
Screw terminal |
| standards |
EN/ISO 13849-1:2008
EN/ISO 13849-2:2012
EN/IEC 62061:2005
EN/IEC 61508:2010
EN/IEC 60947-5-1:2010
EN/IEC 61131-2:2007
EN/IEC 60204-1:2005
EN/IEC 60204-1:2009/A1
IEC 61010-1:2010
EN 50581:2012 |
| product certifications |
TÜV
CSA 61010-2-201 (pending)
CSA Haz Loc Class 1 Division 2 (pending)
RCM
ANSI Haz Loc Class 1 Division 2 (pending)
EAC
UL 61010-2-201 |
| marking |
EFUP 10
RCM
CSA
UL
TÜV
CE
EAC |
| electromagnetic compatibility |
Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to EN/IEC 61000-4-2
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2
Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to EN/IEC 61000-4-3
Susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3
Susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to EN/IEC 61000-4-3
Magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8
Electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to EN/IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to EN/IEC 61000-4-4
1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to EN/IEC 61000-4-5
Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6
Radiated emission - test level: 40 dBµV/m class A (24 V) conforming to EN 55011
Radiated emission - test level: 47 dBµV/m class A (24 V) conforming to EN 55011 |
| mounting support |
Top hat type TH35-7.5 rail conforming to IEC 60715
Top hat type TH35-15 rail conforming to IEC 60715
wall mount using attached fasteners |
| height |
94 mm |
| depth |
73 mm |
| width |
43.7 mm |
| net weight |
0.19 kg |
Environment
| standards |
EN 1088/ISO 14119
EN/ISO 13850
EN/IEC 60947-1
EN 60204-1
EN/IEC 60947-5-1 |
| resistance to electrostatic discharge |
8 kV in air conforming to EN/IEC 61000-4-2
6 kV on contact conforming to EN/IEC 61000-4-2 |
| resistance to electromagnetic fields |
10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| resistance to magnetic fields |
30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| resistance to fast transients |
3 kV for power lines (DC) (DC) conforming to EN/IEC 61000-4-4
2 kV for I/O lines conforming to EN/IEC 61000-4-4 |
| surge withstand |
1 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5 DC
1 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5 DC |
| resistance to conducted disturbances |
10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 |
| electromagnetic emission |
Radiated emissions - test level: 50 dBµV/m class A ( 24 V DC) at 30…230 Hz conforming to IEC 61131-3
Radiated emissions - test level: 57 dBµV/m class A ( 24 V DC) at 230…1000 Hz conforming to IEC 61131-3 |
| ambient air temperature for operation |
-10…55 °C horizontal installation |
| ambient air temperature for storage |
-25…70 °C |
| relative humidity |
10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage) |
| IP degree of protection |
IP20 (terminals) conforming to EN/IEC 60529 |
| pollution degree |
2 |
| operating altitude |
0...2000 m |
| storage altitude |
0…3000 m |
| vibration resistance |
+/- 3.5 mm (f= 5…150 Hz) conforming to IEC 60068-2-6 |
| shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27 |
| mechanical robustness |
Bumps 6 ms 300 shocks (25 gn) conforming to IEC 60068-2-27 |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Weight |
279.0 g |
| Package 1 Height |
7.5 cm |
| Package 1 width |
10.6 cm |
| Package 1 Length |
12.5 c |
|
