| MAİN |
| Range of product |

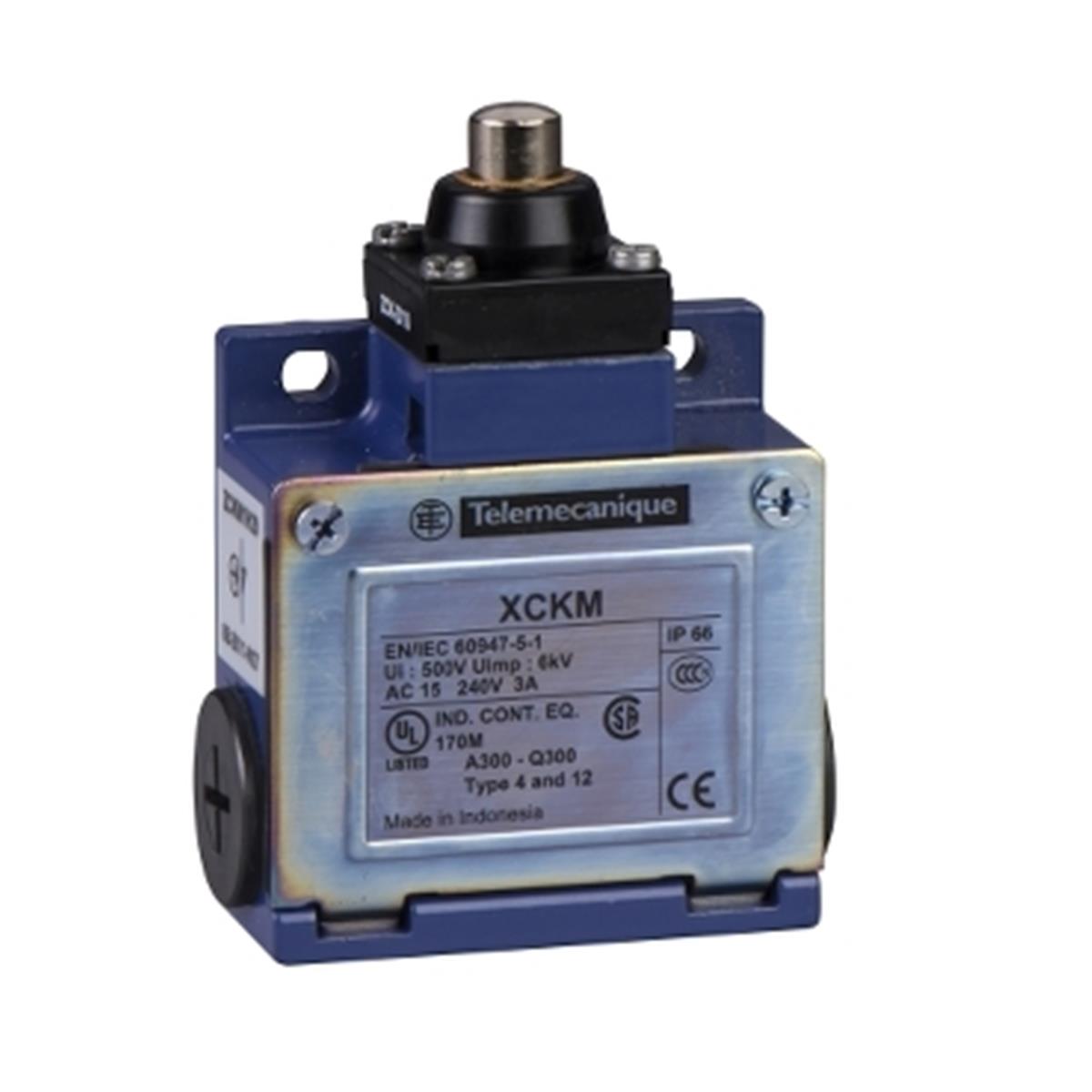

Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch |
| Device short name |
XCKM |
| Body type |
Fixed |
| Head type |
Plunger head |
| Material |
Metal |
| Body material |
Zamak |
| Fixing mode |
By the body |
| Movement of operating head |
Linear |
| Type of operator |
Spring return plunger metal |
| Type of approach |
Vertical approach, 1 direction |
| Cable entry |
3 entries tapped for Pg 11 cable gland |
| Number of poles |
2 |
| Contacts type and composition |
1 NC + 1 NO |
| Contact operation |
Snap action |
| COMPLEMENTARY |
| Switch actuation |
On end |
| Electrical connection |
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form |
Zb |
| Number of steps |
1 |
| Positive opening |
With |
| Positive opening minimum force |
45 N |
| Minimum force for tripping |
15 N |
| Minimum actuation speed |
0.01 m/min |
| Maximum actuation speed |
0.5 m/s |
| Repeat accuracy |
0.05 mm on the tripping points with 1 million operating cycles |
| Contact code designation |
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current |
10 A AC |
| [Ui] rated insulation voltage |
300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14 |
| Maximum resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1 |
| Short-circuit protection |
10 A cartridge fuse, type gG |
| Electrical durability |
5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Mechanical durability |
20000000 cycles |
| Width |
64 mm |
| Height |
64 mm |
| Depth |
30 mm |
| Net weight |
0.25 kg |

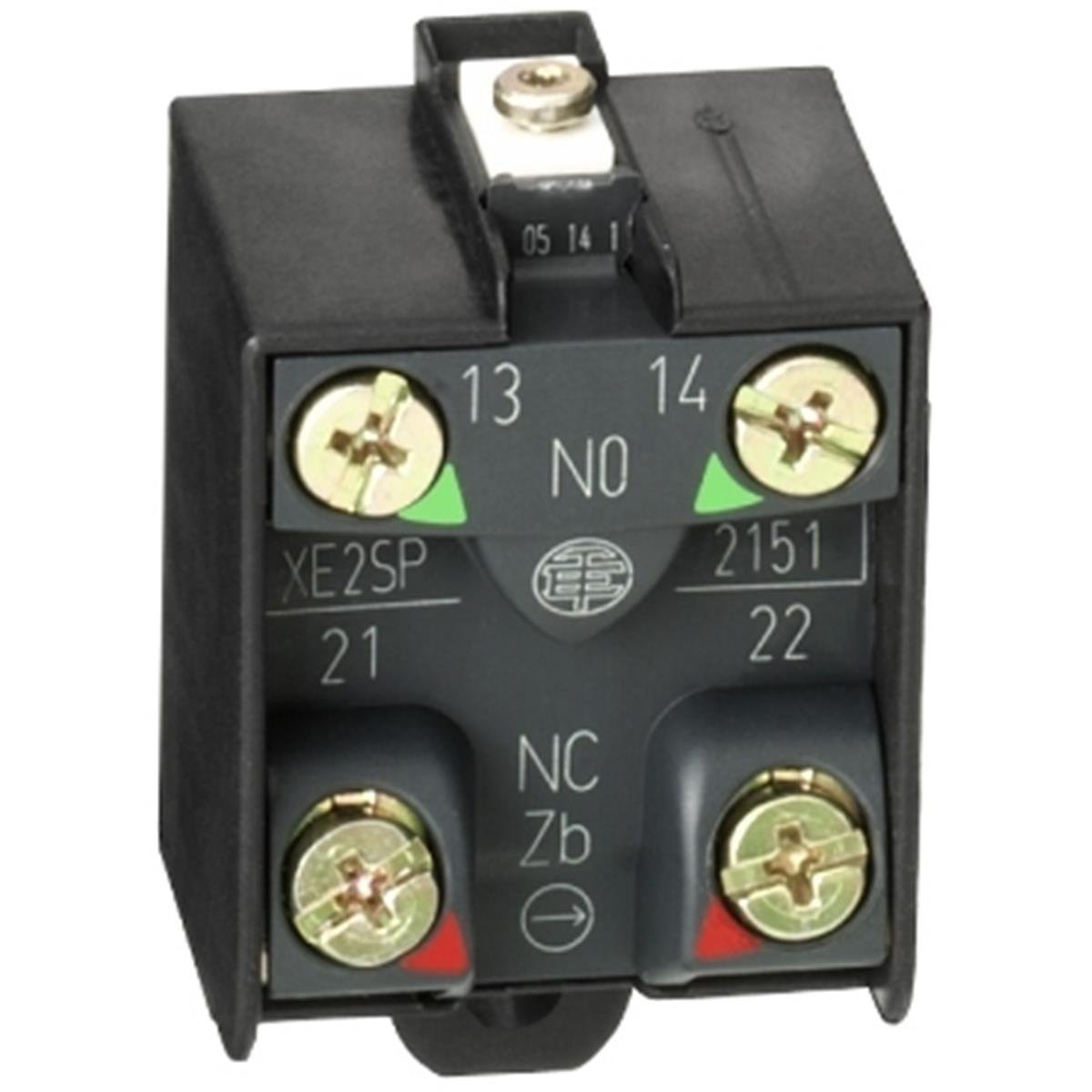

| Terminals description ISO n°1 |
(21-22)NC
(13-14)NO |
| ENVİRONMENT |
| Shock resistance |
50 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Vibration resistance |
25 gn (f= 10…500 Hz) conforming to EN/IEC 60068-2-6 |
| IP degree of protection |
IP66 conforming to EN/IEC 60529 |
| IK degree of protection |
IK05 conforming to EN 50102 |
| Electrical shock protection class |
Class I conforming to IEC 61140
Class I conforming to NF C 20-030 |
| Ambient air temperature for operation |
-25…70 °C |
| Ambient air temperature for storage |
-40…70 °C |
| Protective treatment |
TC |
| Product certifications |
CSA
UL
CCC |
| Standards |
UL 508
IEC 60947-5-1
CSA C22.2 No 14
IEC 60204-1
EN 60204-1
EN 60947-5-1 |
| PACKİNG UNİTS |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Weight |
267.0 g |
| Package 1 Height |
3.2 cm |
| Package 1 width |
6.5 cm |
| Package 1 Length |
14.8 cm |
| Unit Type of Package 2 |
S02 |
| Number of Units in Package 2 |
27 |
| Package 2 Weight |
7.63 kg |
| Package 2 Height |
15 cm |
| Package 2 width |
30 cm |
| Package 2 Length |
40 cm |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
432 |
| Package 3 Weight |
131.124 kg |
| Package 3 Height |
77 cm |
| Package 3 width |
80 cm |
| Package 3 Length |
60 cm |
| OFFER SUSTAİNABİLİTY |
| Sustainable offer status |
Green Premium product |
| REACh Regulation |
REACh Declaration |
| EU RoHS Directive |
EU RoHS Declaration |
| Mercury free |
Yes |
| RoHS exemption information |
Yes |
| Environmental Disclosure |
Product Environmental Profile |
| California proposition 65 |
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| CONTRACTUAL WARRANTY |
| Warranty |
18 months |
| |
|
