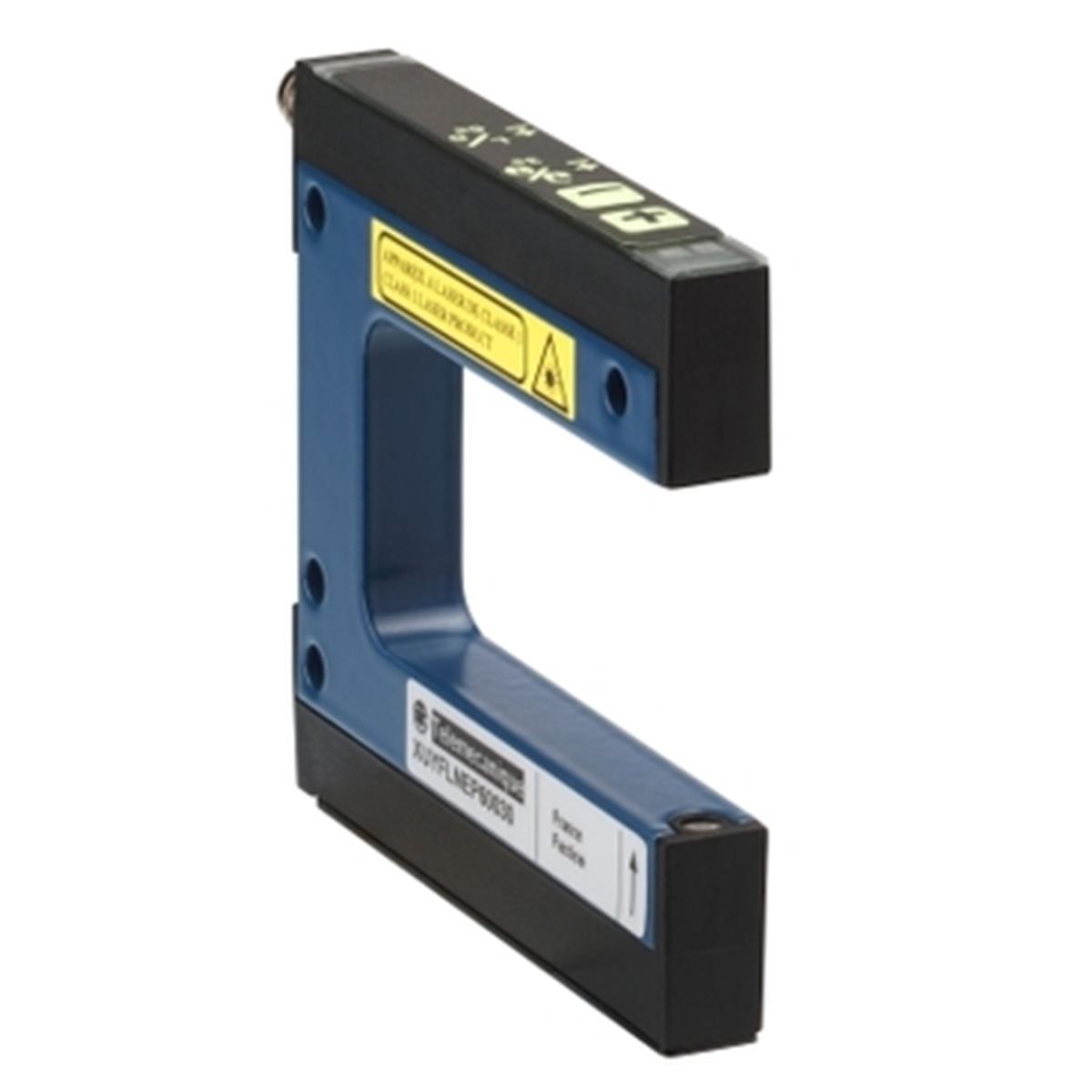

XUYFLNEP60050 Telemecanique Sensors XUYFLNEP60050 Fotoelektrık Sensör Çatal Lazer

Telemecanique Sensors XUYFLNEP60050 Fotoelektrık Sensör Çatal Lazer (XUYFLNEP60050)

İndirim Oranı : %58 İndirim
KDV Dahil : €408,96
İndirimli : €143,14  + KDV
KDV Dahil : ₺6.260,46
TL Fiyat : ₺5.217,05(₺1.043,41 + KDV)
Barkod : 3389119006934
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)

Specifications



Main
range of product Telemecanique Photoelectric sensors XU
series name Application
electronic sensor type Photo-electric sensor
sensor name XUY
sensor design Fork
detection system Thru beam
emission Infrared laser, modulated - class 1 conforming to IEC 825-1
passage width 50 mm
passage depth 59 mm
material Metal/plastic
supply circuit type DC
wiring technique 4-wire
discrete output type PNP and NPN
discrete output function 1 NO or 1 NC programmable
electrical connection 1 male connector M8, 4 pins
product specific application Detection on vibrating rail
Detection of reference marks
Detection of transparent object
Detection on small conveyor
[Sn] nominal sensing distance 50 mm
Complementary
enclosure material Painted aluminium and polyamide/glass
keypad type Green
minimum object diameter for detection 0.05 mm
type of output signal Discrete
output type Solid state
status LED Adjustment mode and keypad locking: 1 LED (red)
Output state: 1 LED (yellow)
[Us] rated supply voltage 12...24 V DC with reverse polarity protection
supply voltage limits 10…30 V DC
switching capacity in mA 100 mA (overload and short-circuit protection)
switching frequency 10 kHz
maximum voltage drop <2 V (closed state)
current consumption 40 mA no-load
load capacitance 330 nF
time response -20…20 µs
setting-up Sensitivity by numeric potentiometer
net weight 0.19 kg
Environment
product certifications CULus
CE
ambient air temperature for operation -20…60 °C
ambient air temperature for storage -30…80 °C
immunity to ambient light 10000 lux natural light
5000 lux incandescent bulb
vibration resistance 7 gn, amplitude = +/- 0.75 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection IP65 conforming to IEC 60529
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 90.0 g
Package 1 Height 1.5 cm
Package 1 width 16 cm
Package 1 Length 13 cm
Contractual warranty
Warranty 18 months
