BCH16HF07332A5C2 Schneider Electric BCH16HF07332A5C2 Servo Motor Bch16, 80 Mm, Shaft 19 Mm, 750W, Heavy İnertia, 3000Rpm, 23Bit
SCHNEIDER ELECTRIC

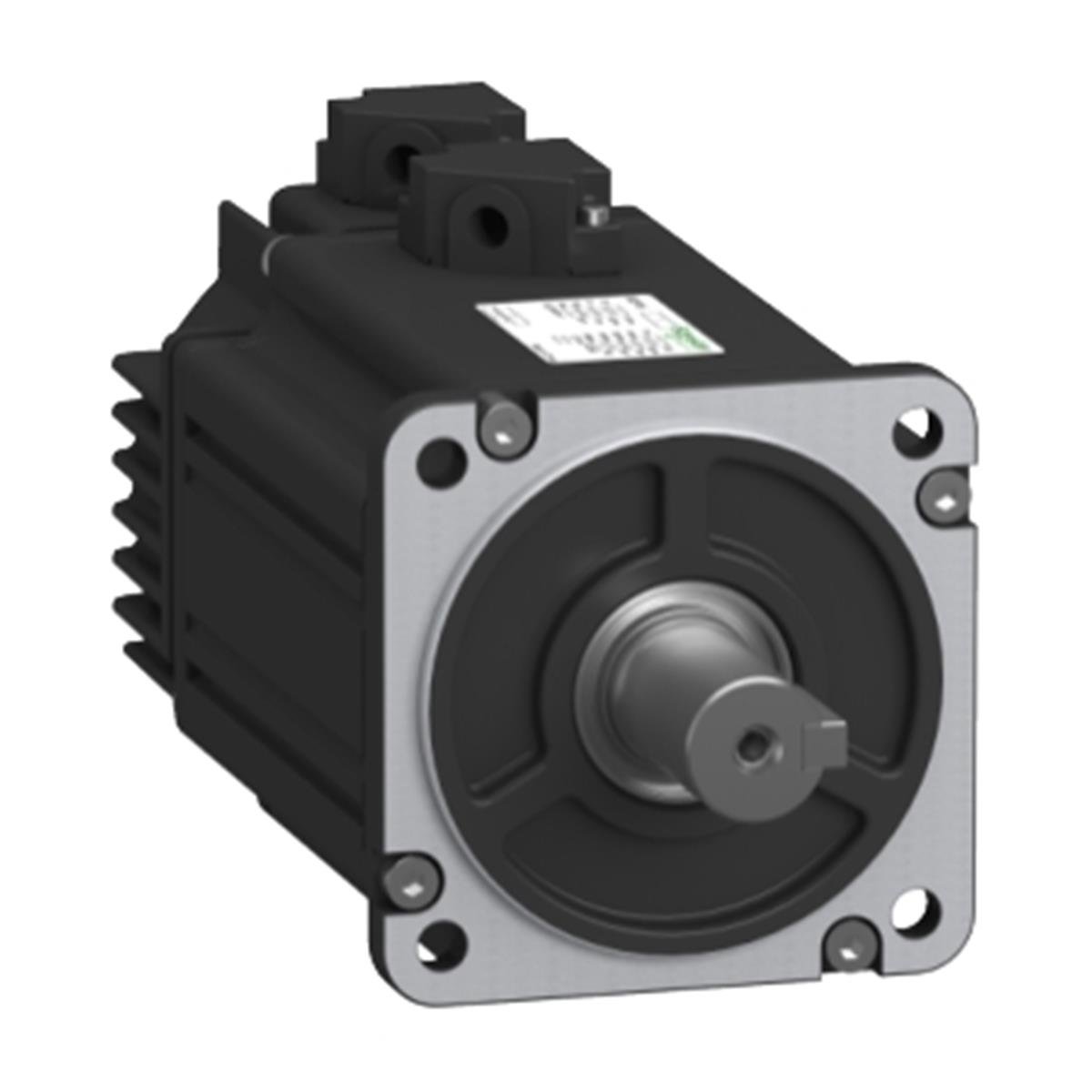

Schneider Electric BCH16HF07332A5C2 Servo Motor Bch16, 80 Mm, Shaft 19 Mm, 750W, Heavy İnertia, 3000Rpm, 23Bit (BCH16HF07332A5C2)

İndirim Oranı : %54 İndirim
KDV Dahil : €691,20
İndirimli : €264,96  + KDV
KDV Dahil : ₺11.785,21
TL Fiyat : ₺9.821,01(₺1.964,20 + KDV)
Barkod : 3606481809346
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)

Specifications



Main
range compatibility Easy Lexium 16
product or component type Servo motor
device short name BCH16
Complementary
maximum mechanical speed 5000 rpm
[Us] rated supply voltage 220 V
network number of phases 3 phases
continuous stall current 4.3 A
continuous stall torque 2.39 N.m for LXM16D at 7.81 A, 220 V, single phase
continuous power 750 W
peak stall torque 7.16 N.m for LXM16D at 7.81 A, 220 V, single phase
nominal output power 750 W for LXM16D at 7.81 A, 220 V, single phase
nominal torque 2.39 N.m for LXM16D at 7.81 A, 220 V, single phase
nominal speed 3000 rpm for LXM16D at 7.81 A, 220 V, single phase
maximum current Irms 15.3 A for LXM16D at 0.75 kW, 220 V
maximum permanent current 14 A
product compatibility LXM16D motion servo motors motor at 0.75 kW, 220 V, single phase
shaft end Parallel key
second shaft Without second shaft end
shaft diameter 19 mm
shaft length 22 mm
key width 6 mm
feedback type 23 bit hight resolution encoder
holding brake Without
holding torque 3.0 N.m
mounting support Asian standard flange
motor flange size 80 mm
electrical connection Free lead
torque constant 0.56 N.m/A at 20 °C
back emf constant 37.3 V/krpm at 20 °C
rotor inertia 1.51 kg.cm²
stator resistance 1.51 Ohm at 20 °C
stator inductance 9.2 mH at 20 °C
stator electrical time constant 6.09 ms at 20 °C
maximum radial force Fr 221.48 N at 3000 rpm
maximum axial force Fa 61.74 N
type of cooling Natural convection
length 137 mm
centring collar diameter 70 mm
centring collar depth 3 mm
number of mounting holes 4
mounting holes diameter 6.5 mm
circle diameter of the mounting holes 90 mm
distance shaft shoulder-flange 36 mm
width 80 mm
height 93 mm
depth 137 mm
net weight 2.7 kg
Environment
IP degree of protection IP65 IM B5, IM V1
IP65 IM V3
ambient air temperature for operation 0…40 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 2.85 kg
Package 1 Height 13.5 cm
Package 1 width 17 cm
Package 1 Length 27.5 cm
Unit Type of Package 2 S04
Number of Units in Package 2 8
Package 2 Weight 22.8 kg
Package 2 Height 30 cm
Package 2 width 40 cm
Package 2 Length 60 cm
