Main
range of product	Easy Lexium 26
product or component type	Motion servo drive
device short name	LXM26D
format of the drive	Compact housing
line current	10 A 166.6 % at 220 V, single phase 10 A 144.8 % at 220 V, three phase

Complementary
network number of phases	Single phase Three phase
[Us] rated supply voltage	220 V (- 10...15 %) for three phase 220 V (- 20...15 %) for single phase
supply voltage limits	200…255 V three phase 170…255 V single phase
supply frequency	50/60 Hz - 5...5 %
network frequency	47.5...63 Hz
continuous output current	7 A at 16 kHz
output current 3s peak	21 A at 220 V
continuous power	1500 W at 220 V
nominal power	1.5 kW at 220 V 16 kHz
switching frequency	16 kHz
overvoltage category	III
maximum leakage current	4.5 mA
output voltage	<= power supply voltage
electrical isolation	Between power and control
type of cable	Twisted shielded pairs cable (single or double) (temperature: 0…55 °C)
electrical connection	Spring terminal, clamping capacity: 1.3...1.5 mm², AWG 16 (L1-L2) Spring terminal, clamping capacity: 1.3...1.5 mm², AWG 16 (R, S, T) Spring terminal, clamping capacity: 1.3...1.5 mm², AWG 16 (U, V, W, PE) Spring terminal, clamping capacity: 1.3...1.5 mm², AWG 16 (PA/+, PBe)
tightening torque	PE (ground): 1.4 N.m
discrete input number	8 programmable (CN1) 1 pulse train input (PTI) (CN1) 2 fast capture (CN1)
discrete input voltage	24 V DC for logic
discrete input logic	Positive or negative (CN1)
discrete output number	5 1
discrete output type	Logic (CN1) at 12...24 V DC Pulse train output (PTO) (CN1)
discrete output voltage	12...24 V DC
discrete output logic	Positive or negative (CN1)
analogue input number	2
absolute accuracy error	0.1 %
analogue input type	V_REF voltage analog input: - 10...10 V, impedance: 10 kOhm, resolution: 12 bits T_REF voltage analog input
control signal type	Servo motor encoder feedback CN2
protection type	Against reverse polarity: inputs signal Against short-circuits: outputs signal Overcurrent: motor Overvoltage: motor Undervoltage: motor Overheating: motor Overload: motor Overspeed: motor
physical interface	RS485 for Modbus Serial line slave
status LED	1 LED (red)charge
signalling function	Servo status and fault codes five 7-segment display units
marking	CULus CE CSA
type of cooling	Integrated fan
operating position	Vertical
product compatibility	Servo motor BCH2 (130 mm, 2 motor stacks)
width	55 mm
height	150 mm
depth	177 mm
net weight	1.2 kg

Environment
EMC filter	Without EMC filter
electromagnetic compatibility	Conducted emission - test level: level 3 category C3 conforming to EN/IEC 61800-3
standards	EN/IEC 61800-5-1
product certifications	CULus CSA CE
IP degree of protection	IP20
vibration resistance	3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3
shock resistance	10 gn, type I conforming to IEC 60068-2-27
relative humidity	5…95 % without condensation
ambient air temperature for operation	0…55 °C
ambient air temperature for storage	-25…65 °C
operating altitude	<= 1000 m without derating > 1000...2000 m 1 % per 100 m

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	1.481 kg
Package 1 Height	7.59 cm
Package 1 width	23.096 cm
Package 1 Length	23.534 cm
Unit Type of Package 2	S03
Number of Units in Package 2	5
Package 2 Weight	8.04 kg
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm

Havale ile Ödeme ₺16.903,22 + KDV

Kredi Kartı Tek Çekim ₺16.903,22 + KDV

Etiketler

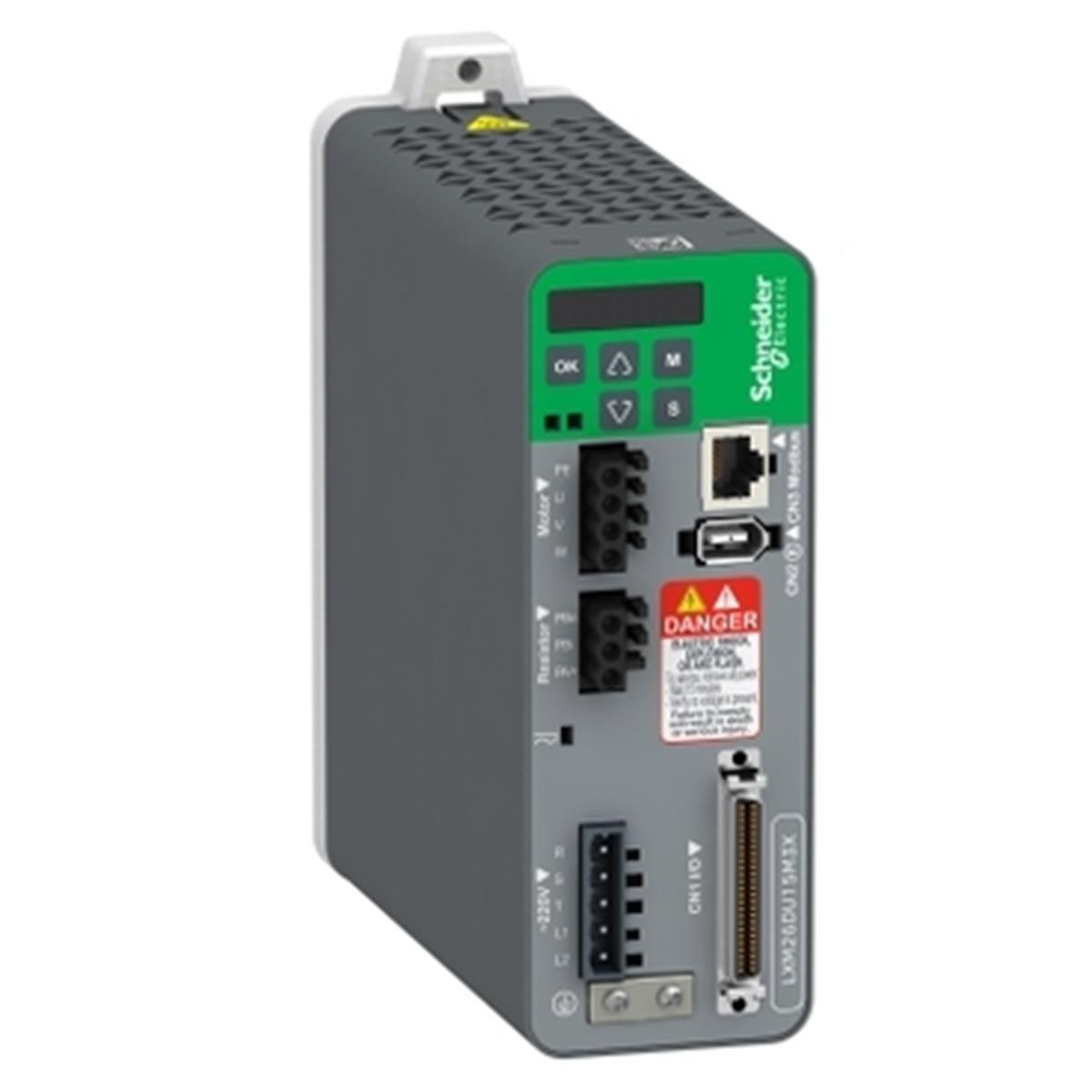

Schneider Electric LXM26DU15M3X Motion servo drive - Lexium 26 - single and three phase 200...230 V - 1500 W (LXM26DU15M3X)
