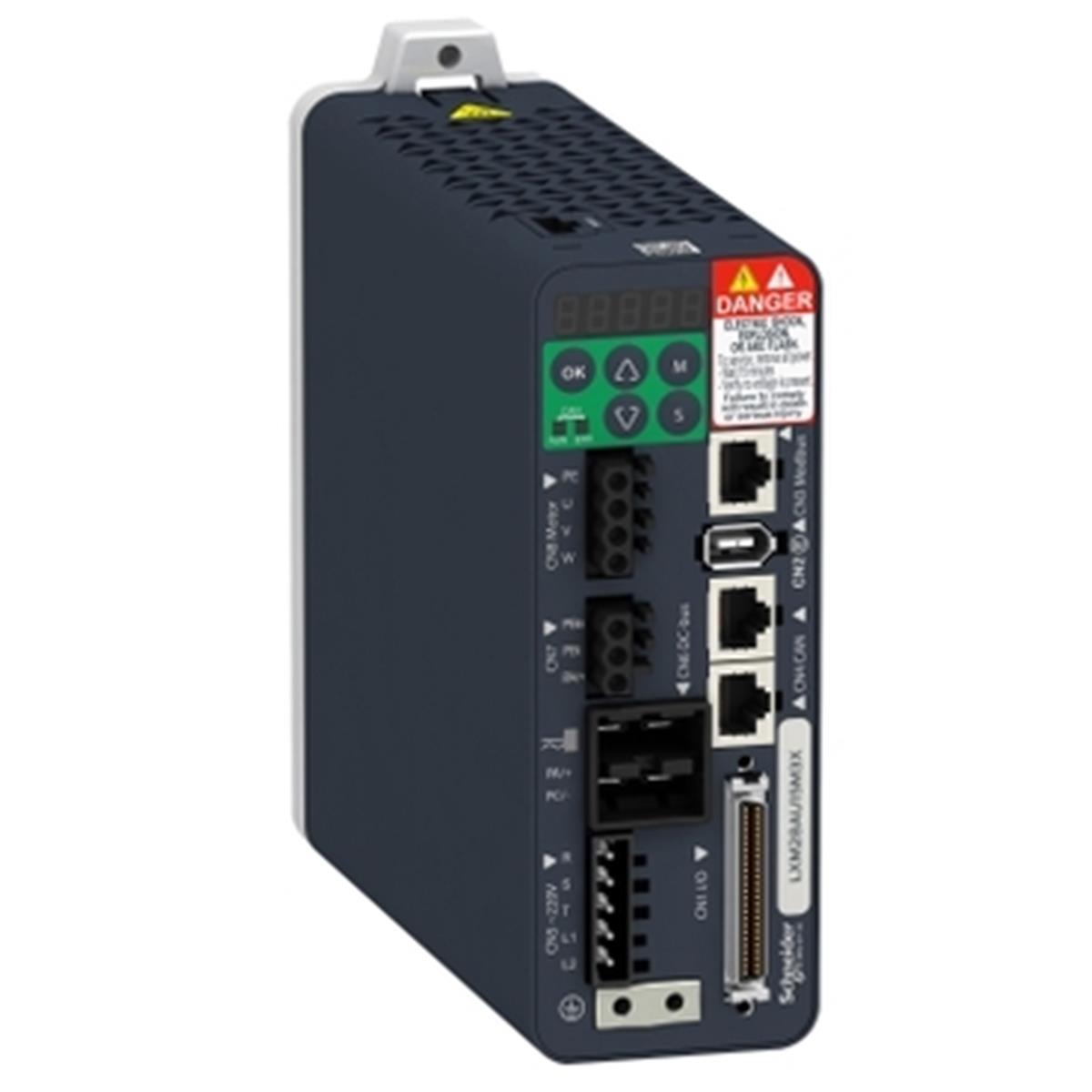

Schneider Electric LXM28AU10M3X motion servo drive, Lexium 28, single and three ph (LXM28AU10M3X)

İndirim Oranı : %56 İndirim
KDV Dahil : €1.308,00
İndirimli : €479,60  + KDV
KDV Dahil : ₺21.169,70
TL Fiyat : ₺17.641,41(₺3.528,28 + KDV)
Barkod : 3606480711800

Specifications



Main
range of product Lexium 28
product or component type Motion servo drive
device short name LXM28A
format of the drive Compact housing
line current 8.5 A 176.3 % at 220 V, single phase
8.5 A 155.5 % at 220 V, three phase
Complementary
network number of phases Single phase
Three phase
[Us] rated supply voltage 220 V (- 10...15 %) for three phase
220 V (- 20...15 %) for single phase
supply voltage limits 200…255 V three phase
170…255 V single phase
supply frequency 50/60 Hz - 5...5 %
network frequency 47.5...63 Hz
EMC filter Without EMC filter
continuous output current 7 A at 16 kHz
output current 3s peak 21 A at 220 V
continuous power 1000 W at 220 V
nominal power 1 kW at 220 V 16 kHz
switching frequency 16 kHz
overvoltage category III
maximum leakage current 4.5 mA
output voltage <= power supply voltage
electrical isolation Between power and control
type of cable Shielded motor cable (temperature: 0…55 °C) copper
electrical connection Spring terminal, clamping capacity: 1.3...1.5 mm², AWG 16 (L1-L2)
Spring terminal, clamping capacity: 1.3...1.5 mm², AWG 16 (R, S, T)
Spring terminal, clamping capacity: 1.3...1.5 mm², AWG 16 (U, V, W, PE)
Spring terminal, clamping capacity: 1.3...1.5 mm², AWG 16 (PA/+, PBe)
discrete input number 8 programmable (CN1)
1 pulse train input (PTI) (CN1)
2 fast capture (CN1)
1 safety function STO (CN9)
discrete input voltage 24 V DC for logic
discrete input logic Positive or negative (CN1)
discrete output number 5 logic output (CN1) at 12...24 V DC
1 pulse train output (PTO) (CN1)
discrete output voltage 12...24 V DC
discrete output logic Positive or negative (CN1)
analogue input number 2
absolute accuracy error 0.1 %
analogue input type V_REF voltage analog input: - 10...10 V, impedance: 10 kOhm, resolution: 14 bits
T_REF voltage analog input
control signal type Servo motor encoder feedback CN2
protection type Against reverse polarity: inputs signal
Against short-circuits: outputs signal
Overcurrent: motor
Overvoltage: motor
Undervoltage: motor
Overheating: motor
Overload: motor
Overspeed: motor
safety function STO (safe torque off), integrated
safety level SIL 2 conforming to IEC 61800-5-2: 2007
SIL 2 conforming to IEC 61508-1: 2010
PL d/category 3 conforming to EN/ISO 13849-1: 2008
SIL 2 conforming to EN/ISO 13849-1: 2009/AC
SIL 2 conforming to EN 60204-1: 2006
SIL 2 conforming to EN 60204-1: 2009/A1
SIL 2 conforming to EN 60204-1: 2010/AC
SIL 2 conforming to IEC 62061: 2012
communication interface CANopen, integrated
CANmotion, integrated
connector type RJ45 (CN4) for CANopen, CANmotion
method of access Slave
transmission rate 250 kbit/s for bus length of 100…250 m for CANopen, CANmotion
500 kbit/s for bus length of 4…100 m for CANopen, CANmotion
1 Mbit/s for bus length of 4 m for CANopen, CANmotion
number of addresses 1…127 for CANopen, CANmotion
physical interface RS485 for Modbus Serial line slave
status LED 1 LED (red) charge
1 LED (green) RUN
1 LED (red) error
signalling function Servo status and fault codes five 7-segment display units
marking CE
CULus
CSA
type of cooling Integrated fan
operating position Vertical
product compatibility Servo motor BCH2 (130 mm, 1 motor stacks) at 1000 W
Servo motor BCH2 (100 mm, 1 motor stacks) at 1000 W
Servo motor BCH2 (130 mm, 2 motor stacks) at 900 W
Servo motor BCH2 (130 mm, 4 motor stacks) at 850 W
width 55 mm
height 150 mm
depth 170 mm
net weight 1.2 kg
output current 3s peak 2 21 A at 220 V
output current 3s peak 3 21 A at 220 V
Environment
electromagnetic compatibility Conducted emission - test level: level 3 category C3 conforming to EN/IEC 61800-3
standards EN/IEC 61800-5-1
product certifications CE
CSA
cULus
IP degree of protection IP20
vibration resistance 3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3
shock resistance 10 gn, type I conforming to IEC 60721-3-3
relative humidity 5…95 % without condensation
ambient air temperature for operation 0…55 °C
ambient air temperature for storage -25…65 °C
operating altitude <= 1000 m without derating
> 1000...2000 m 1 % per 100 m
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 1.5 kg
Package 1 Height 7.555 cm
Package 1 width 22.89 cm
Package 1 Length 23.756 cm
Unit Type of Package 2 S03
Number of Units in Package 2 5
Package 2 Weight 8.387 kg
Package 2 Height 30 cm
Package 2 width 30 cm
Package 2 Length 40 cm
