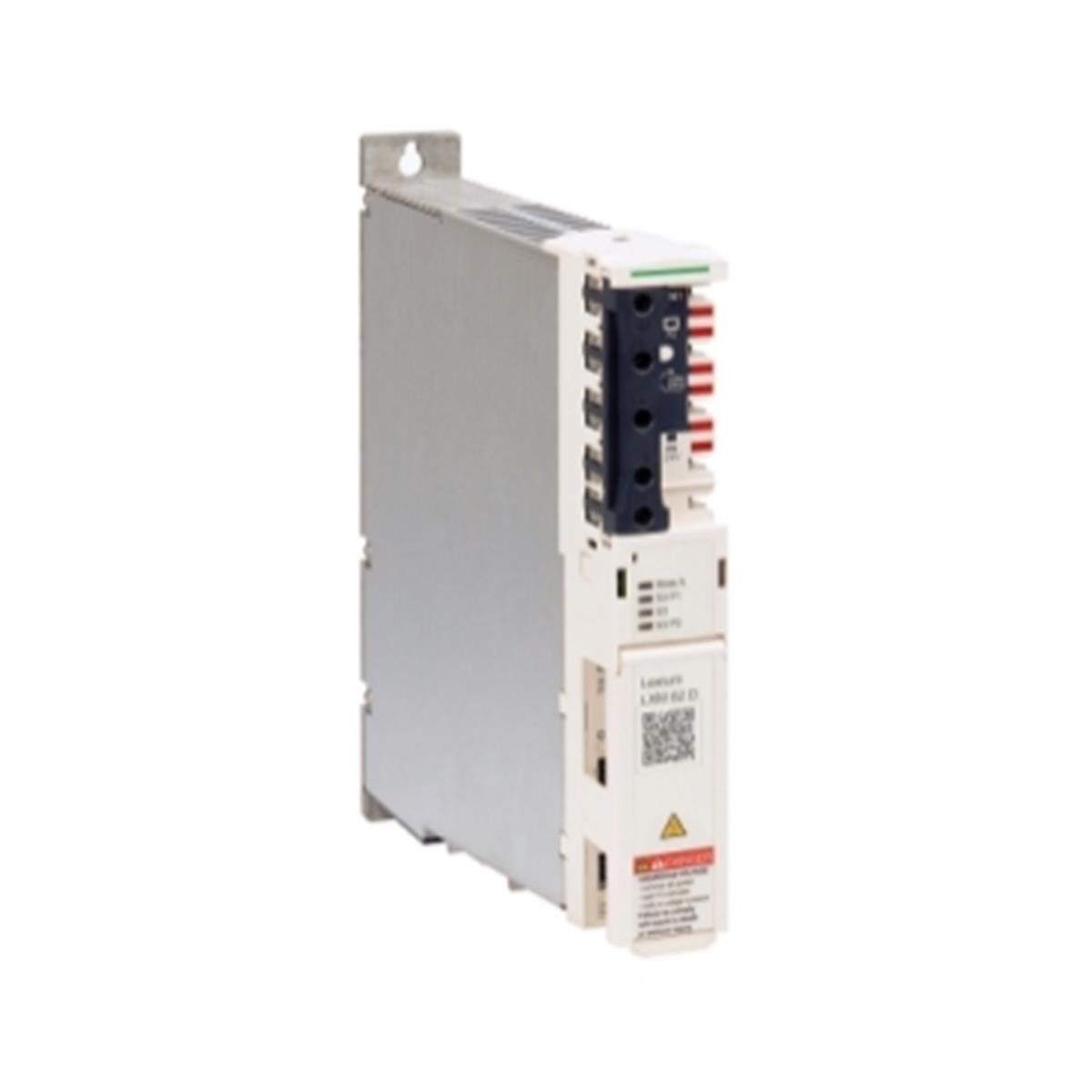

LXM62DU60C21000 Schneider Electric LXM62DU60C21000 Lexium 62 Single Drive - 6 A - accessory kit included-
SCHNEIDER ELECTRIC

Schneider Electric LXM62DU60C21000 Lexium 62 Single Drive - 6 A - accessory kit included- (LXM62DU60C21000)

İndirim Oranı : %56 İndirim
KDV Dahil : €2.742,00
İndirimli : €1.005,40  + KDV
KDV Dahil : ₺43.974,02
TL Fiyat : ₺36.645,02(₺7.329,00 + KDV)
Barkod : 3606485317779
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)

Specifications



Main
range of product PacDrive 3
product or component type Single drive
device short name LXM 62
Complementary
product compatibility Servo motor SHS
Servo motor SH3 (55 mm, 1 motor stacks)optimized in terms of torque and speed
Servo motor SH3 (55 mm, 2 motor stacks)optimized in terms of torque and speed
Servo motor SH3 (55 mm, 3 motor stacks)optimized in terms of torque and speed
Servo motor SH3 (70 mm, 1 motor stacks)optimized in terms of torque and speed
Servo motor SH3 (70 mm, 2 motor stacks)optimized in terms of high torque
Servo motor SH3 (70 mm, 3 motor stacks)optimized in terms of high torque
Servo motor SH3 (100 mm, 1 motor stacks)optimized in terms of high torque
Servo motor MH3 (70 mm, 1 motor stacks)optimized in terms of torque and speed
[Us] rated supply voltage 24 V DC
continuous output current 2 A at 4 kHz
output current 3s peak 6 A at 4 kHz
continuous power 0.95 kW
overvoltage category III
electrical connection Terminal, clamping capacity: 0.2...15 mm², AWG 24...AWG 16 (CN4)
Terminal, clamping capacity: 0.5...16 mm², AWG 20...AWG 6 (CN5)
Terminal, clamping capacity: 0.75...16 mm², AWG 18...AWG 6 (CN6)
Terminal, clamping capacity: 0.2...6 mm², AWG 24...AWG 10 (CN7)
tightening torque CN1: 2.5 N.m
number of inputs 2 digital
2 touch probe
discrete input voltage 24 V DC
number of outputs 2 digital
discrete output voltage 24 V DC
safety function STO (safe torque off)
physical interface SERCOS III
net weight 3 kg
Environment
standards CSA C22.2 No 14
EN/ISO 13849-2
UL 508C
IEC 62061
EN 61800-5-2
EN/ISO 13849-1
EN 62061
EN 61800-3
IEC 61508
EN 61800-5-1
product certifications CE
TÜV
UL
CSA
EAC
IP degree of protection IP20 conforming to EN/IEC 60529
vibration resistance 10 m/s² conforming to EN/IEC 60721-3-3
shock resistance 100 m/s² conforming to EN/IEC 60721-3-3
pollution degree 2 conforming to EN/IEC 61800-5-2
environmental characteristic 3K3 conforming to IEC 60721-3-3
relative humidity 5…85 %
ambient air temperature for operation 5…55 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 4.91 kg
Package 1 Height 25 cm
Package 1 width 55 cm
Package 1 Length 18.6 cm
