TM3DQ8RG Schneider Electric TM3DQ8RG Dijital Çıkış 8Li Röle Yaylı
SCHNEIDER ELECTRIC

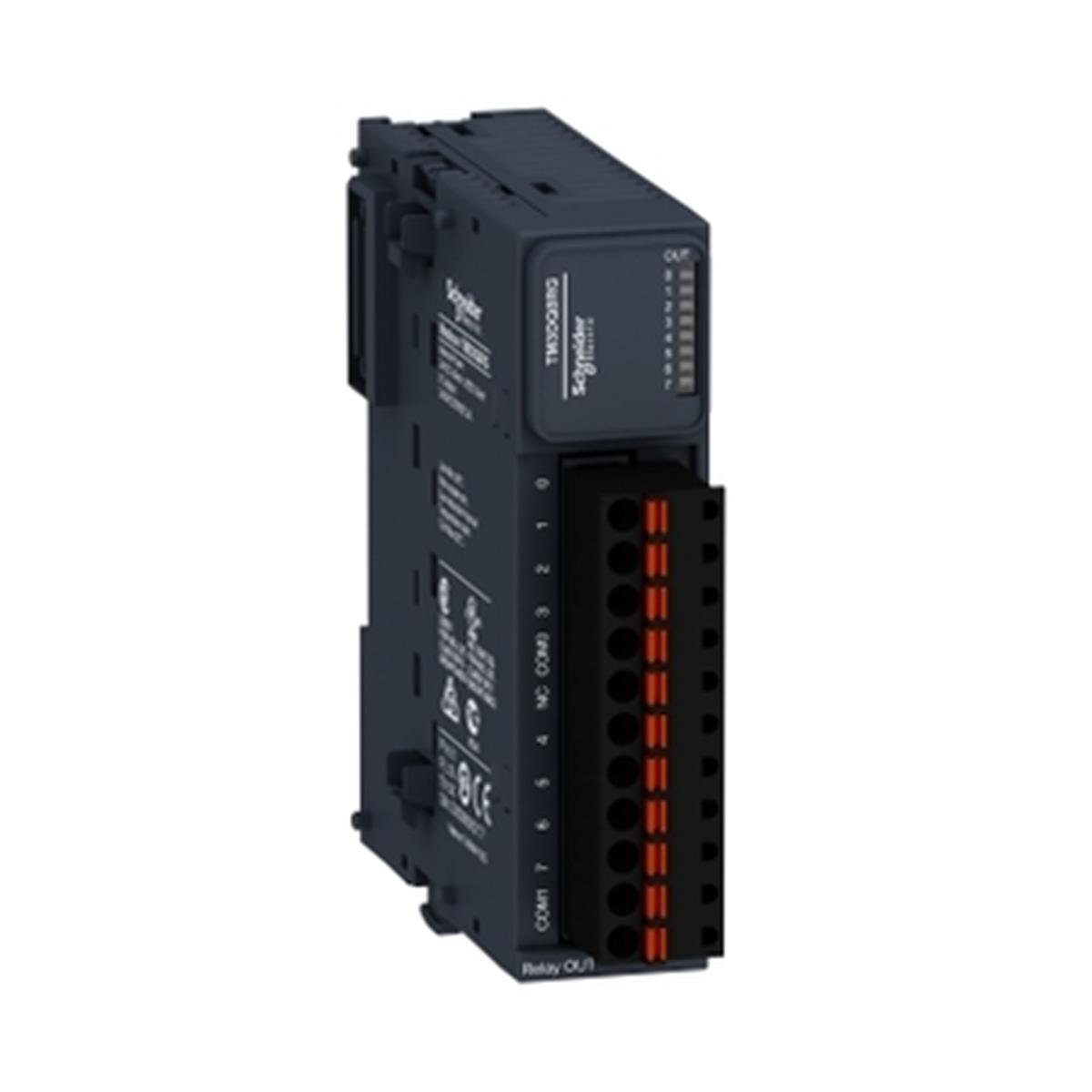

Schneider Electric TM3DQ8RG Dijital Çıkış 8Li Röle Yaylı (TM3DQ8RG)

İndirim Oranı : %54 İndirim
KDV Dahil : €177,60
İndirimli : €68,08  + KDV
KDV Dahil : ₺2.945,12
TL Fiyat : ₺2.454,26(₺490,85 + KDV)
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)

Specifications



Main
range of product Modicon TM3
product or component type Discrete output module
range compatibility Modicon M241
Modicon M251
Modicon M221
Modicon M262
discrete output type Relay normally open
discrete output number 8
discrete output logic Positive or negative
discrete output voltage 24 V DC for relay output
240 V AC
discrete output current 2000 mA for relay output
Complementary
discrete I/O number 8
current consumption 5 mA at 5 V DC via bus connector (at state off)
0 mA at 24 V DC via bus connector (at state off)
40 mA at 24 V DC via bus connector (at state on)
30 mA at 5 V DC via bus connector (at state on)
response time 10 ms (turn-on)
5 ms (turn-off)
mechanical durability 20000000 cycles
minimum load 10 mA at 5 V DC for relay output
local signalling 1 LED per channel (green) for output status
electrical connection 11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for outputs
maximum cable distance between devices Unshielded cable: <30 m for relay output
insulation Between output and internal logic at 2300 V AC
Between outputs at 750 V AC
Between output groups at 1500 V AC
marking CE
mounting support Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kit
height 90 mm
depth 84.6 mm
width 27.4 mm
net weight 0.11 kg
Environment
standards EN/IEC 61131-2
EN/IEC 61010-2-201
product certifications C-Tick
cULus
resistance to electrostatic discharge 8 kV in air conforming to EN/IEC 61000-4-2
4 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
resistance to magnetic fields 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
resistance to fast transients 2 kV for relay output conforming to EN/IEC 61000-4-4
surge withstand 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC
resistance to conducted disturbances 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
electromagnetic emission Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011
Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
ambient air temperature for operation -10…35 °C vertical installation
-10…55 °C horizontal installation
ambient air temperature for storage -25…70 °C
relative humidity 10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage)
IP degree of protection IP20 with protective cover in place
pollution degree 2
operating altitude 0...2000 m
storage altitude 0…3000 m
vibration resistance 3.5 mm at 5…8.4 Hz on DIN rail
3 gn at 8.4…150 Hz on DIN rail
3.5 mm at 5…8.4 Hz on panel
3 gn at 8.4…150 Hz on panel
shock resistance 15 gn for 11 ms
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 230.0 g
Package 1 Height 7.5 cm
Package 1 width 12.5 cm
Package 1 Length 10.5 cm
