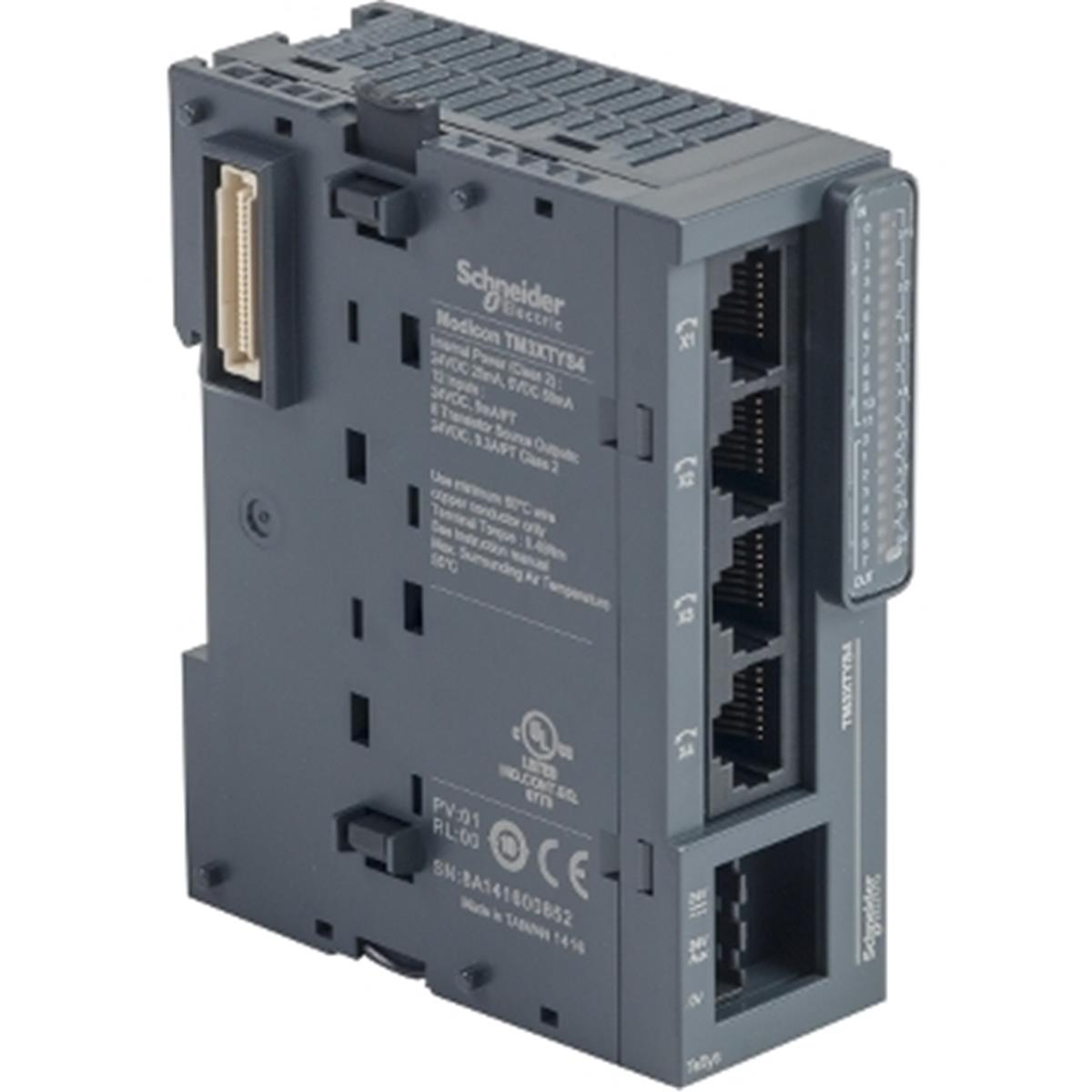

TM3XTYS4 Schneider Electric TM3XTYS4 Parallel interface module, Modicon TM3, 4 Tesys motors
SCHNEIDER ELECTRIC

Schneider Electric TM3XTYS4 Parallel interface module, Modicon TM3, 4 Tesys motors (TM3XTYS4)

İndirim Oranı : %50 İndirim
KDV Dahil : €255,60
İndirimli : €106,50  + KDV
KDV Dahil : ₺4.458,71
TL Fiyat : ₺3.715,59(₺743,12 + KDV)
Barkod : 3606480611636
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)

Specifications





Main
range of product Modicon TM3
product or component type Parallel interface module
product specific application TeSys U
range compatibility Modicon M221
Modicon M251
Modicon M241
Modicon M262
[Us] rated supply voltage 24 V DC by external supply (- 15...20 %)
number of input channels 12
number of output channels 8
Complementary
current consumption 5 mA at 5 V DC via bus connector at state on
35 mA at 5 V DC via bus connector at state off
0 mA at 24 V DC via bus connector at state on
10 mA at 24 V DC via bus connector at state off
1200 mA at 24 V DC external power supply at state on
input voltage limits 19.2...28.8 V per input
input current limits 5 mA per input
response time < 10 ms turn-on for input
< 10 ms turn-off for input
output voltage 24 V DC for transistor output
maximum load current 800 mA per channel in starting mode during 100 ms
300 mA per channel in normal mode
insulation Between the RJ45 connectors and internal logic at 500 V AC
Non-insulated between RJ45 connectors
output protection type Against overload, protection technology: current limiter
reset Automatic reset
local signalling 3 LEDs green for input status per channel
2 LEDs green for output status per channel
electrical connection 3 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for connecting the 24 V DC power supply
4 RJ45 connectorsfor connecting the motor starters
mounting support Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kit
height 90 mm
depth 85 mm
width 30 mm
net weight 0.115 kg
Environment
product certifications C-Tick
cULus
marking CE
resistance to electrostatic discharge 8 kV in air conforming to EN/IEC 61000-4-2
4 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
resistance to magnetic fields 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
resistance to fast transients 1 kV for input conforming to EN/IEC 61000-4-4
1 kV for output conforming to EN/IEC 61000-4-4
surge withstand 1 kV input common mode conforming to EN/IEC 61000-4-5
1 kV output common mode conforming to EN/IEC 61000-4-5
resistance to conducted disturbances 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
electromagnetic emission Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011
Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
ambient air temperature for operation -10…35 °C vertical installation
-10…55 °C horizontal installation
ambient air temperature for storage -25…70 °C
relative humidity 10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage)
IP degree of protection IP20 with protective cover in place
pollution degree 2
operating altitude 0...2000 m
storage altitude 0…3000 m
vibration resistance 3.5 mm at 5…8.4 Hz on DIN rail
3 gn at 8.4…150 Hz on DIN rail
3.5 mm at 5…8.4 Hz on panel
3 gn at 8.4…150 Hz on panel
shock resistance 15 gn for 11 ms
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 220.0 g
Package 1 Height 7.5 cm
Package 1 width 10.5 cm
Package 1 Length 12.5 cm
Unit Type of Package 2 S04
Number of Units in Package 2 42
Package 2 Weight 9.462 kg
Package 2 Height 30 cm
Package 2 width 40 cm
Package 2 Length 60 cm
