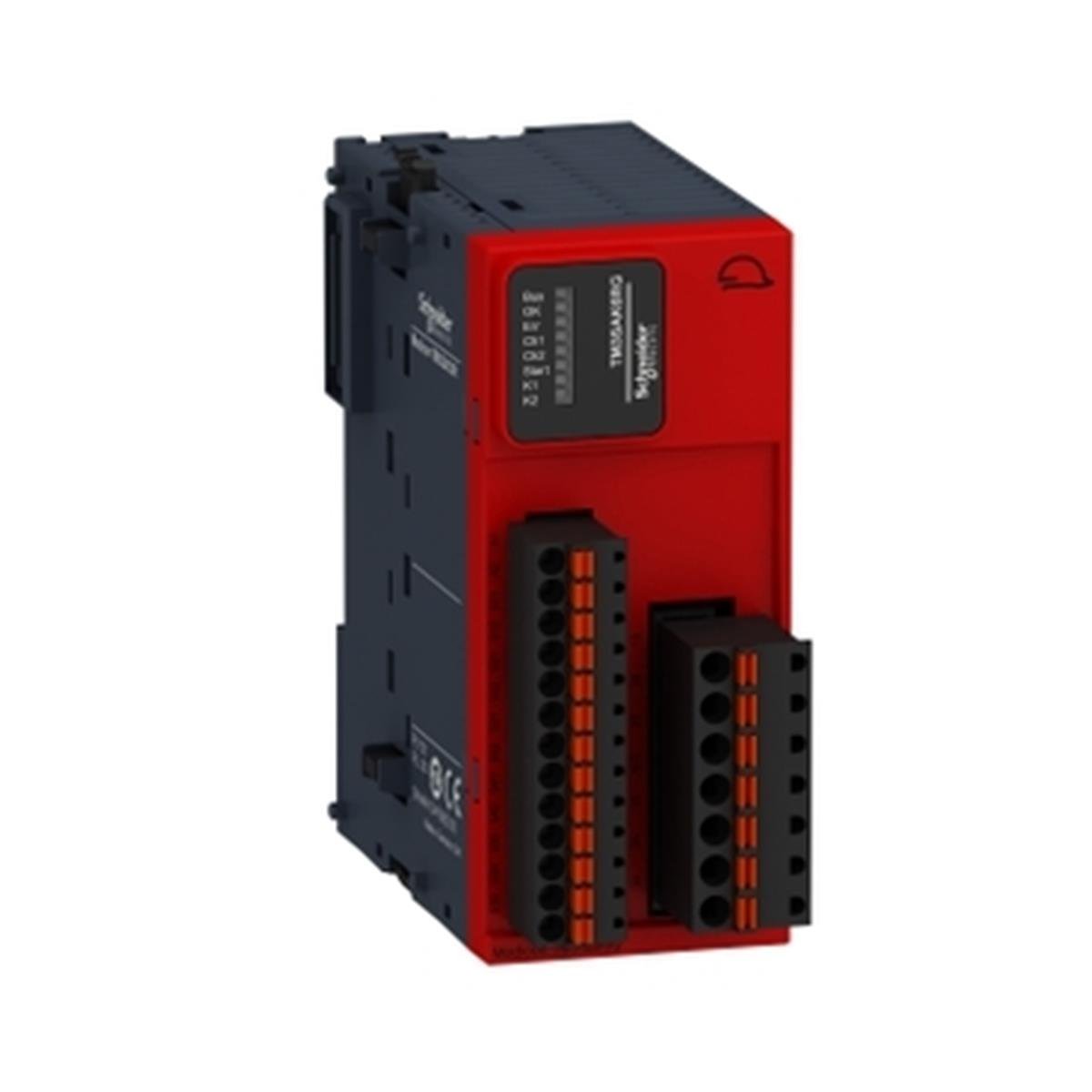

TM3SAK6RG Schneider Electric TM3SAK6RG TM3 Güvenlik Modülü , 3 Fonksiyon CAT4
SCHNEIDER ELECTRIC

Schneider Electric TM3SAK6RG TM3 Güvenlik Modülü , 3 Fonksiyon CAT4 (TM3SAK6RG)

İndirim Oranı : %54 İndirim
KDV Dahil : €240,00
İndirimli : €92,00  + KDV
KDV Dahil : ₺3.979,89
TL Fiyat : ₺3.316,57(₺663,31 + KDV)
Barkod : 3606485393049
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)

Specifications





Main
range of product Modicon TM3 Safety
product or component type Safety module
device short name TM3SAK
safety module application For emergency stop, switch, sensing mat/edges or safety light curtain monitoring
function of module Emergency stop monitoring 1-channel wiring
Emergency stop monitoring 2-channel wiring
Monitoring of a movable guard with 2 switches and automatic start
Monitoring of a movable guard
Multiple emergency stop monitoring 2-channel wiring
Proximity sensor monitoring PNP/PNP
Proximity sensor monitoring PNP/NPN
Sensing mat and edges monitoring
Monitoring of electro-sensitive protection equipment (ESPE) PNP/PNP
Monitoring of electro-sensitive protection equipment (ESPE) PNP/NPN
safety level Can reach PL e/category 4 conforming to EN/ISO 13849-1: 2008
Can reach PL e/category 4 conforming to EN/ISO 13849-2: 2012
Can reach SILCL 3 conforming to EN/IEC 62061: 2005
Can reach SIL 3 conforming to EN/IEC 61508: 2010
Complementary
safety reliability data DC = 95 % conforming to EN/ISO 13849-1
PFHd = 5E-9 1/h conforming to IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A
PFHd = 30E-9 1/h conforming to IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A
MTTFd = 500 years conforming to EN/ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A
MTTFd = 85 years conforming to EN/ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A
SFF = 95 % conforming to IEC 61508-1
HFT = 1 conforming to IEC 61508-1
Type = A conforming to IEC 61508-1
synchronisation time between inputs Unlimited
2 or 4 s depending of wiring configurable by software
connections - terminals Captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34
Captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34
Captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34
Captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34
Captive spring terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34
Captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals
Captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals
Captive spring terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals
Captive spring terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals
output type Relay instantaneous opening, 3 NO circuit(s), potential free
number of safety circuits 3 NO for relay instantaneous opening
maximum switching voltage 230 V utilisation category AC-15 at 50 Hz (relay instantaneous opening)
24 V utilisation category DC-13 (relay instantaneous opening)
[Us] rated supply voltage 24 V - 15...20 % DC
power consumption in W 0.2 W at 5 V DC
3.6 W at 24 V DC
input protection type Internal, electronic
[Uc] control circuit voltage 24 V DC
maximum cable distance between devices 30 m
breaking capacity 360 VA holding AC-15 B300 relay output
3600 VA inrush AC-15 B300 relay output
breaking capacity 4 A 24 V 50 ms DC-13 relay output
output thermal current 6 A per relay for relay output
[Ith] conventional free air thermal current 18 A
associated fuse rating 4 A gG or gL for relay output conforming to EN/IEC 60947-5-1
6 A fast blow for relay output conforming to EN/IEC 60947-5-1
minimum output current 10 mA for relay output
output voltage 10 V relay output
maximum response time on input open 40 ms
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to IEC 60647-5-1
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to IEC 60647-5-1
current consumption 100 mA at 24 V DC external supply
local signalling 8 LEDs (green/red) for user
electrical connection Spring terminal
product compatibility Safety light curtains conforming to EN/IEC 61496-1 (type 4)
Sensing mat/edges conforming to EN 1760-1
standards EN/ISO 13849-1:2008
EN/ISO 13849-2:2012
EN/IEC 62061:2005
EN/IEC 61508:2010
EN/IEC 60947-5-1:2010
EN/IEC 61131-2:2007
EN/IEC 60204-1:2005
EN/IEC 60204-1:2009/A1
IEC 61010-1:2010
EN 50581:2012
product certifications CSA 61010-2-201 (pending)
TÜV
CSA Haz Loc Class 1 Division 2 (pending)
EAC
RCM
UL 61010-2-201
ANSI Haz Loc Class 1 Division 2 (pending)
marking CSA
RCM
UL
EFUP 10
CE
TÜV
EAC
electromagnetic compatibility Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to EN/IEC 61000-4-2
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2
Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to EN/IEC 61000-4-3
Susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3
Susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to EN/IEC 61000-4-3
Magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8
Electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to EN/IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to EN/IEC 61000-4-4
1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to EN/IEC 61000-4-5
Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6
Radiated emission - test level: 40 dBµV/m class A (24 V) conforming to EN 55011
Radiated emission - test level: 47 dBµV/m class A (24 V) conforming to EN 55011
mounting support Top hat type TH35-7.5 rail conforming to IEC 60715
Top hat type TH35-15 rail conforming to IEC 60715
wall mount using attached fasteners
height 94 mm
depth 73 mm
width 43.7 mm
net weight 0.19 kg
Environment
standards EN 1088/ISO 14119
EN/IEC 60947-5-1
EN/IEC 60947-1
EN 60204-1
EN/ISO 13850
resistance to electrostatic discharge 8 kV in air conforming to EN/IEC 61000-4-2
6 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
resistance to magnetic fields 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
resistance to fast transients 3 kV for power lines (DC) (DC) conforming to EN/IEC 61000-4-4
2 kV for I/O lines conforming to EN/IEC 61000-4-4
surge withstand 1 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5 DC
1 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5 DC
resistance to conducted disturbances 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
electromagnetic emission Radiated emissions - test level: 50 dBµV/m class A ( 24 V DC) at 30…230 Hz conforming to IEC 61131-3
Radiated emissions - test level: 57 dBµV/m class A ( 24 V DC) at 230…1000 Hz conforming to IEC 61131-3
ambient air temperature for operation -10…55 °C horizontal installation
ambient air temperature for storage -25…70 °C
relative humidity 10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage)
IP degree of protection IP20 (terminals) conforming to EN/IEC 60529
pollution degree 2
operating altitude 0...2000 m
storage altitude 0…3000 m
vibration resistance +/- 3.5 mm (f= 5…150 Hz) conforming to IEC 60068-2-6
shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
mechanical robustness Bumps 6 ms 300 shocks (25 gn) conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 260.0 g
Package 1 Height 7.5 cm
Package 1 width 10.6 cm
Package 1 Length 12.5 cm
Unit Type of Package 2 S03
Number of Units in Package 2 18
Package 2 Weight 5.207 kg
Package 2 Height 30 cm
Package 2 width 30 cm
Package 2 Length 40 cm
